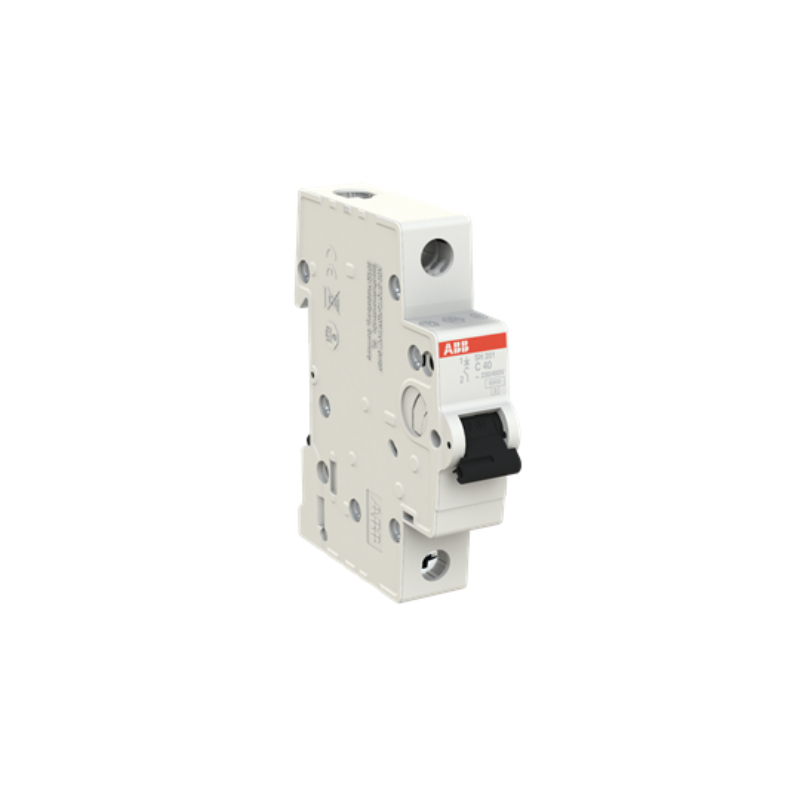

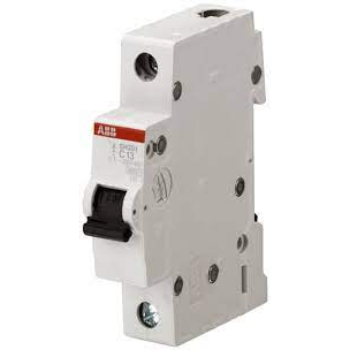

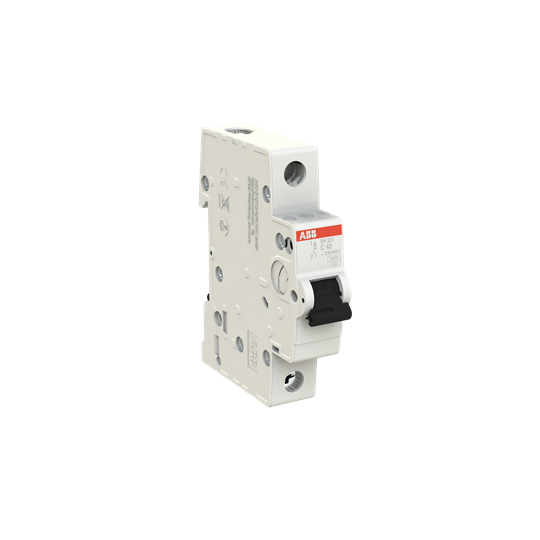

ABB SH201C40 MCB 6kA 1P 40A 230VAC C CURVE DOMESTIC

Product Code: SH201C40

The ABB Miniature Circuit Breaker is a 1 pole breaker with a rating of 40A and a voltage of 230VAC. It provides C curve protection against short circuit and thermal overload. This breaker is specifically designed for loadcentre applications and cannot be chassis mounted. It belongs to the domestic range of ABB products.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/400
Application Domestic
Cable Cross Section - Flexible (mm²) Top/Bottom - 16/16
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 25/25
Current Rating (A) 40
Curve Type C Curve
Degree of Protection IP20
Dimensions (mm) 85H x 69D x 17.5W
Family SH200
Housing Material Insulation Group II, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 6
Inc-Rated Conditional Short Circuit Capacity (kA) 6
Maximum Operational Voltage AC (V) 253
Minimum Operational Voltage AC (V) 12
Mounting Type DIN Rail
No. of Poles 1P
Pole Width (mm) 17.5
Poles 1P
Pollution Degree 2
Power Loss (W) 4.8/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 40
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 440
Rated Operational Voltage AC (V) 230/400
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage AC (V) 230
Series SH200
Standards and Approvals AS/NZS 60898-1
Trip Curve C Curve
