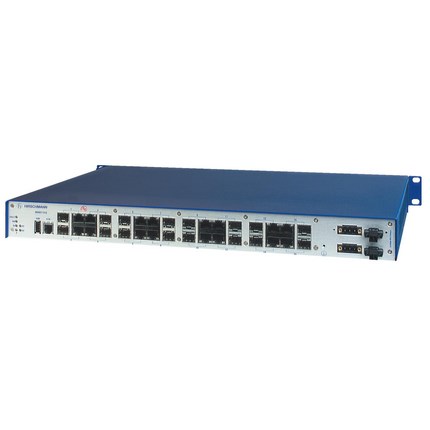

HIRSCHMANN MANAGED RACKMOUNT SWITCH MAR1030-4O ZZZZZZZZTTTTTTTTTTTTTTTTFM9HPH 943 940-999-019

Product Code: 943 940-999-019

Explore the Hirschmann MAR1030, a robust managed rackmount switch designed for challenging environments. This Layer 2 professional switch features 4 Gigabit Ethernet SFP ports, 8 additional SFP slots supporting 100 Mbit/s, and 16 RJ45 connectors for 10/100 Mbit/s twisted pair cables. Engineered to withstand extreme temperatures ranging from -40°C to +85°C, it comes with a conformal coating for added protection. The dual power supply operates on both DC (110/250V) and AC (110/230V) with a plug-in connector. Certified with industry standards including cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121, this Hirschmann switch from the MAR1030 series ensures reliability and safety in network solutions.

Technical Specifications

Maximum Temperature (°C) 85
Minimum Temperature (°C) -40
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 16
No. of Fiber Ports 12
Rated Maximum Operational Voltage AC (V) 230
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Series MAR1030
Standards and Approvals IEC 61850-3
