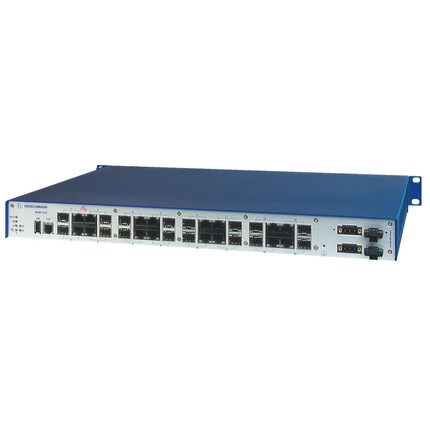

HIRSCHMANN MANAGED RACKMOUNT SWITCH MAR1030-4O TTTTTTTTTTTTTTTTTTTTTTTTSMMHPH 943 940-999-007

Product Code: 943 940-999-007

Discover the Hirschmann MAR1030, a robust managed rackmount switch designed for challenging environments. This Layer 2 Professional switch features 4 Gigabit Ethernet SFP ports and 24 fast Ethernet RJ45 connections, supporting speeds of 10/100 Mbit/s. Engineered to operate reliably between 0°C and +60°C, it is equipped with dual power supplies that accept a range of inputs from 110/250 V DC to 110/230 V AC via plug-in connectors. The MAR1030 meets rigorous industry standards with approvals including cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121. Ideal for network solutions in industrial settings, this Hirschmann switch ensures performance and durability where it matters most.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 24
No. of Fiber Ports 4
Rated Maximum Operational Voltage AC (V) 230
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Series MAR1030
Standards and Approvals IEC 61850-3
