HIRSCHMANN MANAGED RACKMOUNT SWITCH MAR1030-4O MMMMMMMMMMMMTTTTTTTTTTTTUMMHPH 943 940-999-008

Product Code: 943 940-999-008

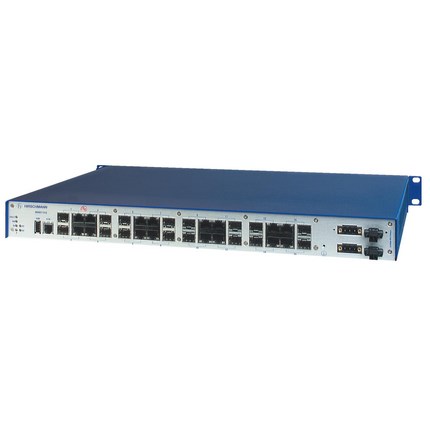

Explore the Hirschmann MAR1030, a robust managed rackmount switch designed for challenging environments. This Layer 2 Professional switch features 4 Gigabit Ethernet SFP ports, 12 multimode SC connectors with a 100 Mbit/s capacity, and an additional 12 RJ45 connectors supporting 10/100 Mbit/s speeds. Engineered to withstand extreme temperatures ranging from -40°C to +85°C, it ensures reliability and performance. The dual power supply operates on both DC (110/250V) and AC (110/230V) with plug-in connectivity for versatile use. Certified with industry standards including cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121, the MAR1030 is an ideal solution for network solutions in demanding industrial settings.

Technical Specifications

Maximum Temperature (°C) 85
Minimum Temperature (°C) -40
No. of 100Mb Ports 24
No. of 1GB Ports 4
No. of Ethernet Ports 12
No. of Fiber Ports 16
Rated Maximum Operational Voltage AC (V) 230
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Series MAR1030
Standards and Approvals IEC 61850-3
