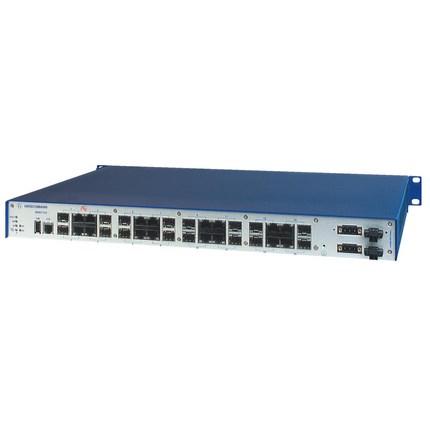

HIRSCHMANN MANAGED RACKMOUNT SWITCH MAR1020-99 TTTTTTTTTTTTZZZZ99999999SG9HPH 943 940-999-016

Product Code: 943 940-999-016

The Hirschmann MAR1030 is a robust, Layer 2 professional managed rackmount switch designed for demanding network environments. It features 12 RJ45 twisted pair ports supporting Fast Ethernet (10/100 Mbit/s) and 4 SFP slots for 100 Mbit/s fiber connections. Engineered to operate reliably within a temperature range of 0°C to +60°C, this switch is equipped with a versatile power supply that accepts both DC (110/250V) and AC (110/230V) inputs via spring clips. The MAR1030 meets rigorous industry standards, holding approvals from cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121. This makes it an ideal solution for network solutions in industrial settings where compliance and durability are paramount.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 16
No. of Ethernet Ports 12
No. of Fiber Ports 4
Rated Maximum Operational Voltage AC (V) 230
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Series MAR1030
Standards and Approvals IEC 61850-3
