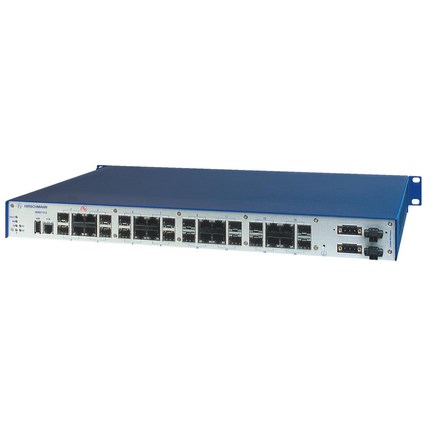

HIRSCHMANN MANAGED RACKMOUNT SWITCH MAR1020-99 TTTTTTTTBBBBBB9999999999SMMHPH 943 940-999-002

Product Code: 943 940-999-002

The Hirschmann MAR1030 is a robust, managed rackmount switch designed for demanding network environments. This Layer 2 Professional switch features 8 Fast Ethernet twisted-pair RJ45 ports and 6 multimode fiber optic 100BASE-FX ports with LC connectors, ensuring versatile connectivity options. Engineered to operate reliably within a temperature range of 0°C to +60°C, it is equipped with dual power supplies supporting both DC (110/250V) and AC (110/230V) inputs via plug-in connectors. The MAR1030 meets rigorous industry standards, holding approvals from cUL508, cUL1604 Class 1 Div2, Germanischer Lloyd, IEC 61850-3, IEEE 1613, and EN 50121. As part of Hirschmann's Network Solutions in the Switches category, this series is tailored for engineers seeking resilient networking hardware that can withstand harsh industrial conditions.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 14
No. of Ethernet Ports 8
No. of Fiber Ports 6
Rated Maximum Operational Voltage AC (V) 230
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 110
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type 19" Control Cabinet
Series MAR1030
Standards and Approvals IEC 61850-3
