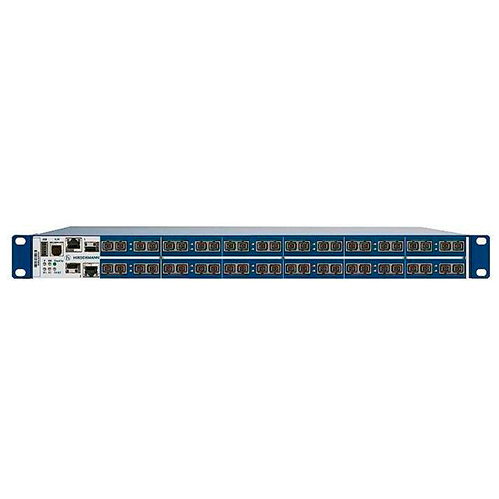

Hirschmann 943 940-999-025 Rack Mount Managed Ethernet Switch 10x100-FX 14x10/100-TX Twisted Pair RJ45 100-240VAC

Product Code: 943 940-999-025

  • Managed switch with FX Port-LC connection
  • Wide voltage range: 100-240 VAC
  • Compact size: 448x345x44 mm
  • IP30 protection rating
  • Operates in temps from 0 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rack Mount Managed Ethernet Switch
Brand HIRSCHMANN
Cable Type FX Multi Mode
Connection Type FX Port-LC
Connector Type FX Port - LC
Degree of Protection IP30
Depth 44 mm
Height 345 mm
Number of Ports (10) 100-FX, 14 x 10/100-TX Twisted Pair RJ-45
Operational Temperature 0 to 60 deg C
Rated Voltage 100-240 VAC
Standards and Approvals cUL508, cUL1604, IEC61850-3, IEEE1613, EN50121
Switch Type Switch - Managed
Width 448 mm

Description

<p>When considering a robust and reliable managed switch for your industrial or commercial applications, this product stands out with its comprehensive features tailored to meet diverse technical demands. Designed for environments requiring dependable connectivity, it combines versatility with durability.</p><p>This managed switch is equipped with a total of 24 ports, including ten 100-FX ports that utilize FX Multi Mode cable type and fourteen 10/100-TX Twisted Pair RJ-45 ports. This configuration ensures efficient data transmission across various network setups. The FX Port-LC connection type further enhances the device&amp;#39;s ability to maintain high-speed data transfer over fiber connections.</p><p>Engineered to operate within a wide voltage range of 100-240 VAC, this switch can adapt to different power supply conditions without compromising performance. Its operational temperature range from 0 to 60 degrees Celsius makes it suitable for various industrial settings where temperature fluctuations are common.</p><p>In terms of design, the switch boasts dimensions of 448 mm in width, 345 mm in height, and a slim depth of just 44 mm. This compact form factor allows for easy installation while maintaining ample space efficiency in control panels or server racks.</p><p>The degree of protection is rated at IP30, indicating that the device is protected against solid objects larger than 2.5 mm but not against water ingress. This rating makes it ideal for indoor use where dust protection is essential but exposure to moisture is minimal.</p><p>Compliance with industry standards such as cUL508, cUL1604, IEC61850-3, IEEE1613, and EN50121 underscores the switch&amp;#39;s reliability and safety credentials. These approvals ensure compatibility with global electrical standards and guarantee dependable performance under rigorous conditions typically found in industrial applications.</p><p>Overall, this managed switch offers an optimal blend of functionality and resilience designed to support complex networking requirements efficiently while ensuring longevity in demanding environments.</p>
