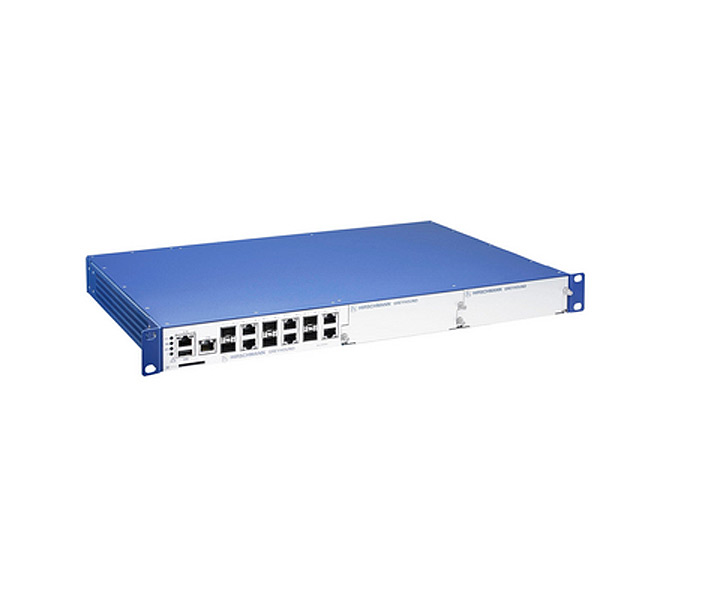

Hirschmann 942 135-999-046 Managed Rackmount Ethernet Switch Rack Mount 2xGE/2.5GE SFP 10xFE/GE TX 2

Product Code: 942 135-999-046

  • Managed switch with PoE support
  • Rack mountable, compact design
  • IP30 protection for durability
  • Wide temp range: 0 to 60°C
  • CE, FCC, IEC61850 certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Managed Rackmount Ethernet Switch
Brand HIRSCHMANN
Degree of Protection IP30
Depth 354 mm
Height 44 mm
Mounting Type Rack
Number of Ports 2 x GE/2.5GE SFP, 10 x FE/GE TX Expandable With 2 Media Modules, 8 x FE/GE Per Module
Operational Temperature 0 to 60 deg C
Rated Power 32 W
Rated Voltage 24-48 V, 48-54 V PoE
Standards and Approvals CE, FCC, EN61131, EN60950, cUL60950, IEC61850, IEEE1613
Switch Type Switch - Managed
Width 444 mm

Description

<p>This managed industrial product is designed to meet the rigorous demands of commercial and industrial environments. With its robust build and versatile features, it offers a reliable solution for those who need efficient network management.</p><p>The device operates with a rated power of 32 W and supports a rated voltage range from 24-48 V, including Power over Ethernet (PoE) capabilities at 48-54 V. This flexibility in voltage makes it suitable for various applications, ensuring compatibility with different power sources.</p><p>In terms of physical specifications, the unit is constructed for rack mounting, featuring dimensions that include a width of 444 mm, height of 44 mm, and depth of 354 mm. Its compact size allows for easy integration into existing infrastructure without occupying excessive space.</p><p>The product&amp;#39;s degree of protection is rated at IP30, which means it&amp;#39;s protected against solid objects over 2.5 mm but not against water. This makes it ideal for controlled indoor environments where dust protection is necessary.</p><p>Operational temperature ranges from 0 to 60 degrees Celsius, allowing the product to function effectively in diverse climate conditions typical in Australia. Whether installed in an air-conditioned control room or an environment with fluctuating temperatures, this device maintains performance stability.</p><p>For connectivity needs, the unit provides extensive port options: two GE/2.5GE SFP ports and ten FE/GE TX ports expandable with two media modules—each module supporting eight FE/GE ports. This expandability ensures scalability as network demands grow.</p><p>Compliance with standards such as CE, FCC, EN61131, EN60950 cUL60950 IEC61850 and IEEE1613 underscores its adherence to international safety and operational benchmarks making it a trusted choice across industries requiring stringent compliance like utilities or transportation sectors.</p><p>Overall this managed solution offers reliability adaptability and compliance essential for modern industrial networks looking to maintain uptime while expanding capabilities efficiently within regulated frameworks without compromising on quality or safety measures inherent in its design attributes.</p>
