HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-AT2ZSHH01V9HHSE2A99 942 135-999-005

Product Code: 942 135-999-005

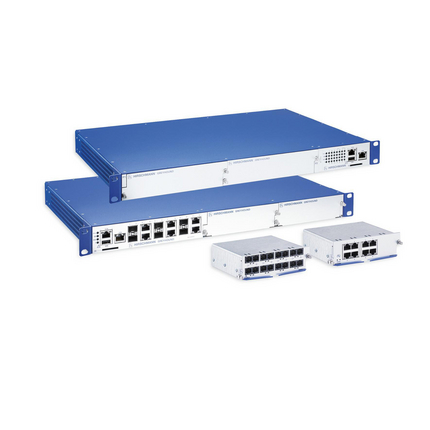

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers flexibility with up to 28 ports, starting with a solid base of 12 fixed ports that include 2 GE/2.5 GE SFP slots and 10 FE/GE TX ports. It's scalable through two media module slots, each supporting an additional 8 FE/GE ports. Engineered for reliability in a range of environments, it operates efficiently between 0°C to +60°C. The GRS1042 ensures continuous power supply with dual inputs ranging from 60 to 250 V DC and 110 to 240 V AC. It comes equipped with one cover plate assembled for media modules. Advanced networking is made possible with HiOS Layer 2 features and Unicast Routing capabilities. This switch meets rigorous industry standards with approvals including CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 (Substation), making it suitable for demanding applications such as substations. Trust in the quality and performance that Hirschmann's network switches provide for your critical infrastructure needs.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 26
No. of 2.5GB Ports 2
No. of Ethernet Ports 10
No. of Fiber Ports 18
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
