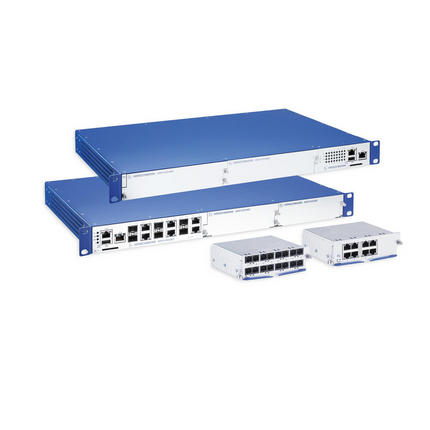

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-AT2ZEHH00V9HHSE3AUR 942 135-999-006

Product Code: 942 135-999-006

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers versatility with up to 28 ports, starting with a solid base of 12 fixed ports that include 2 GE/2.5 GE SFP slots and 10 FE/GE TX ports. Expandability is at your fingertips with two media module slots, each supporting an additional 8 FE/GE ports. Engineered for challenging environments, it features a conformal coating for protection from -40°C to +70°C. Dual power supply inputs range from 60 to 250 V DC and 110 to 240 V AC, ensuring consistent operation. With HiOS Layer 3 Advanced software, it facilitates sophisticated unicast routing. Compliance with industry standards such as CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 certifies its reliability in substation applications. The GRS1042 series is an ideal solution for engineers seeking high-performance network switches that can withstand harsh conditions while providing advanced networking features.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
No. of 1GB Ports 26
No. of 2.5GB Ports 2
No. of Ethernet Ports 10
No. of Fiber Ports 18
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
