HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-6T6ZTLL02Z9HHSE2A99 942 135-999-018

Product Code: 942 135-999-018

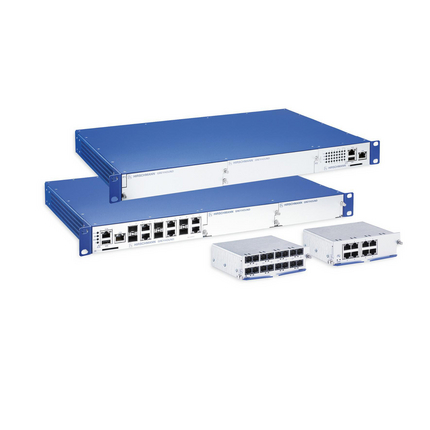

The Hirschmann GRS1042 is a high-performance, modular managed rackmount switch designed for robust networking solutions. This switch offers a versatile configuration with up to 28 ports, starting with a solid base of 12 fixed ports that include four GE/2.5 GE and two FE/GE SFP slots, complemented by six FE/GE TX ports. For expanded connectivity, it features two media module slots that can accommodate an additional eight FE/GE ports each. Engineered to operate reliably in temperatures ranging from 0°C to +60°C, the GRS1042 ensures continuous performance in various environments. Equipped with dual power supply inputs supporting 24 to 48 V DC or PoE/PoE+ at 48 to 54 V DC, this switch is built for resilience and uninterrupted service. The unit comes with two cover plates pre-assembled for media modules. With HiOS Layer 2 Advanced software capabilities, the GRS1042 delivers sophisticated network management and security features. This switch meets stringent industry standards and holds CE, FCC, EN 61131, and EN 60950 approvals, ensuring compliance with global regulations. Ideal for engineers seeking a reliable network infrastructure component, the Hirschmann GRS1042 series stands out as a smart choice for advanced switching needs within industrial settings.

Technical Specifications

Maximum Temperature (°C) 70
Minimum Temperature (°C) -40
No. of 1GB Ports 18
No. of 2.5GB Ports 4
No. of Ethernet Ports 6
No. of Fiber Ports 22
Nominal Power (W) 32
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
