HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-6T6ZSLL01V9HHSE2A99 942 135-999-015

Product Code: 942 135-999-015

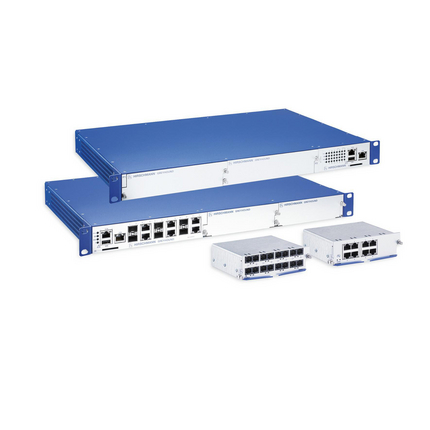

The Hirschmann GRS1042 is a high-performance, modular managed rackmount switch designed for robust networking solutions. This switch offers up to 28 ports, starting with a base of 12 fixed ports that include four Gigabit Ethernet/2.5 Gigabit Ethernet SFP slots, two Fast Ethernet/Gigabit Ethernet SFP slots, and six Fast Ethernet/Gigabit Ethernet TX ports. It's engineered for flexibility with two media module slots, each supporting an additional eight Fast Ethernet/Gigabit Ethernet ports. Built to withstand temperatures ranging from 0°C to +60°C and equipped with dual power supply inputs (24 to 48 V DC or 48 to 54 V DC for PoE/PoE+), the GRS1042 ensures continuous operation in diverse environments. The switch comes with one cover plate assembled for media modules and runs on HiOS Layer 2 Advanced software, providing sophisticated network management capabilities. Meeting rigorous industry standards, the GRS1042 holds approvals from CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 (Substation), making it suitable for industrial applications including substations. Whether you're looking to upgrade your network infrastructure or build a new one, the Hirschmann GRS1042 offers a reliable and scalable solution that engineers can trust.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 18
No. of 2.5GB Ports 4
No. of Ethernet Ports 6
No. of Fiber Ports 22
Nominal Power (W) 32
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
