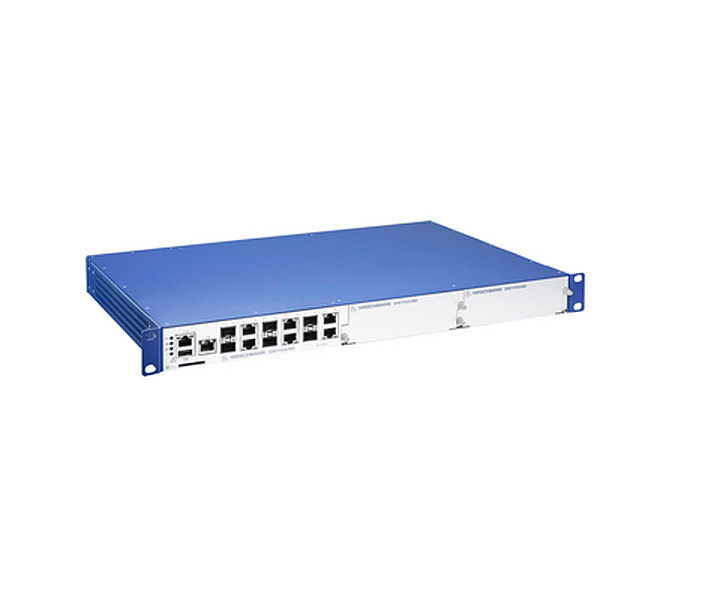

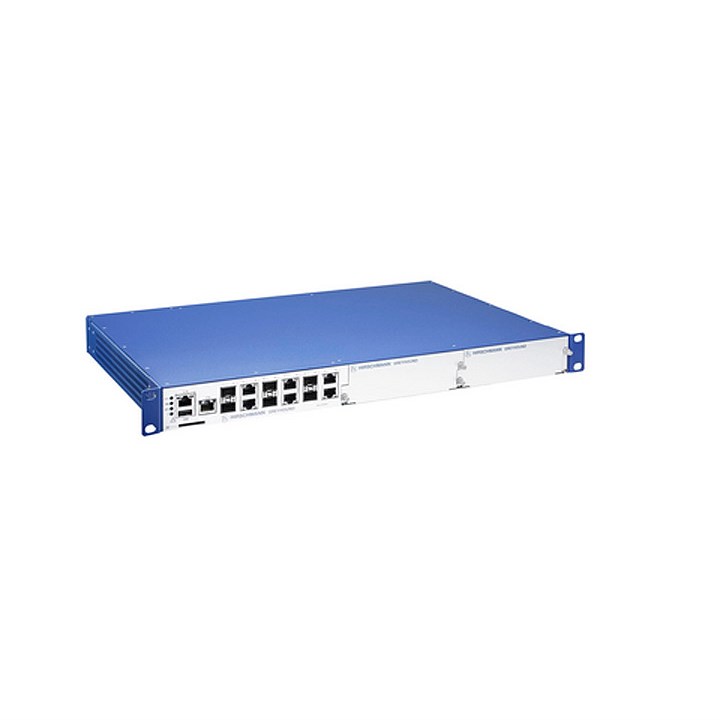

Hirschmann 942 135-999-044 Managed Rackmount Ethernet Switch Rack Mount 4xGE/2.5GE SFP 2xFE/GE SFP 6xFE/GE TX 2

Product Code: 942 135-999-044

  • Managed switch with 32W power
  • Supports 110-240 VAC input
  • Rack-mounted design, IP30 protection
  • Operates in 0 to 60°C range
  • CE, FCC, EN & IEC compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Managed Rackmount Ethernet Switch
Brand HIRSCHMANN
Degree of Protection IP30
Depth 354 mm
Height 44 mm
Includes Cover Plate Assembled For Supply 2
Mounting Type Rack
Number of Ports 4 x GE/2.5GE SFP, 2 x FE/GE SFP, 6 x FE/GE TX Expandable With 2 Media Modules, 8 x FE/GE Per Module
Operational Temperature 0 to 60 deg C
Rated Power 32 W
Rated Voltage 110-240 VAC
Standards and Approvals CE, FCC, EN61131, EN60950, IEC61850-3, IEEE1613
Switch Type Switch - Managed
Width 444 mm

Description

<p>For professionals in the electrical engineering and automation sectors, selecting a reliable managed switch is crucial for ensuring seamless network operations. This particular model offers a robust solution with its versatile features and compliance with international standards.</p><p>Designed for rack mounting, it fits neatly into your existing setup with dimensions of 444 mm width, 44 mm height, and 354 mm depth. Its compact form factor does not compromise on performance or capability. The switch operates efficiently within a voltage range of 110-240 VAC and boasts a rated power of 32 W, making it suitable for various industrial applications.</p><p>This switch is engineered to withstand operational temperatures from 0 to 60 degrees Celsius, providing flexibility across diverse environments. With an IP30 degree of protection, it is safeguarded against solid objects over 2.5 mm but should be placed in controlled environments to avoid exposure to moisture or dust beyond this rating.</p><p>The connectivity options are extensive: four GE/2.5GE SFP ports, two FE/GE SFP ports, and six FE/GE TX ports that can be expanded further using two media modules—each supporting up to eight FE/GE connections per module. This expandability ensures that as your network grows or changes in complexity, your infrastructure remains adaptable without requiring complete overhauls.</p><p>Adherence to rigorous standards such as CE, FCC certifications along with EN61131 and EN60950 ensures safety and reliability in operation while IEC61850-3 and IEEE1613 compliance make it apt for use in substations and other demanding industrial settings where electromagnetic interference might be a concern.</p><p>Included with the unit is an assembled cover plate designed for supply configurations which simplifies installation by protecting internal components while maintaining accessibility when needed.</p><p>In summary, this managed switch provides robust performance combined with scalability options tailored to meet evolving industrial demands—all conforming to stringent global standards ensuring both quality assurance and peace of mind during deployment.</p>
