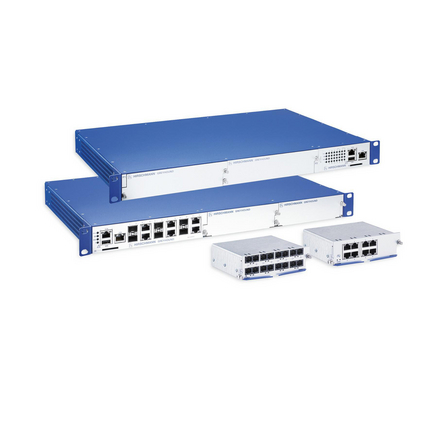

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-6T6ZSHH02Z9HHSE3AUR 942 135-999-016

Product Code: 942 135-999-016

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch supports up to 28 ports, starting with a solid base of 12 fixed ports that include 4 GE/2.5 GE and 2 FE/GE SFP slots, plus 6 FE/GE TX ports. Flexibility is at the forefront with its two media module slots allowing for an additional 16 FE/GE ports. Engineered to operate reliably in temperatures ranging from 0°C to +60°C and equipped with dual power supply inputs (60-250 V DC and 110-240 V AC), it ensures uninterrupted service. The GRS1042 comes with one cover plate assembled for media modules and runs on HiOS Layer 3 Advanced software, facilitating sophisticated unicast routing. Compliance with CE, FCC, EN 61131, and EN 60950 standards underscores its quality assurance. Ideal for engineers seeking high-performance network switches within the Hirschmann portfolio.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 18
No. of 2.5GB Ports 4
No. of Ethernet Ports 6
No. of Fiber Ports 22
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
