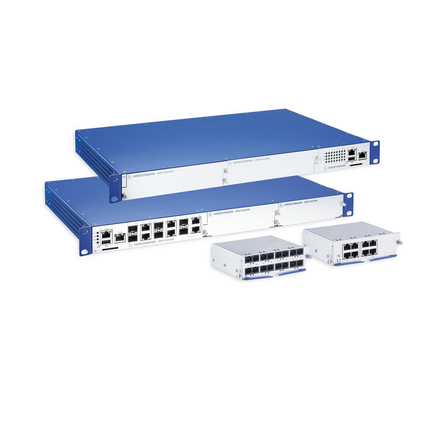

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-6T6ZSHH01V9HHSE2A99 942 135-999-008

Product Code: 942 135-999-008

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers versatility with up to 28 ports, starting with a solid base of 12 fixed ports that include four GE/2.5 GE and two FE/GE SFP slots, complemented by six FE/GE TX ports. Expandability is at its core, featuring two media module slots capable of adding an additional 16 FE/GE ports. Engineered to operate reliably in temperatures ranging from 0°C to +60°C and equipped with dual power supply inputs supporting both DC (60-250V) and AC (110-240V), it ensures uninterrupted service. The GRS1042 comes pre-assembled with one cover plate for media modules and runs on HiOS Layer 2 Advanced software, providing sophisticated management capabilities. Compliance with industry standards such as CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 certifies its readiness for substation environments. Trust in Hirschmann's commitment to quality network switches that meet the rigorous demands of modern industrial applications.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 18
No. of 2.5GB Ports 4
No. of Ethernet Ports 6
No. of Fiber Ports 22
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
