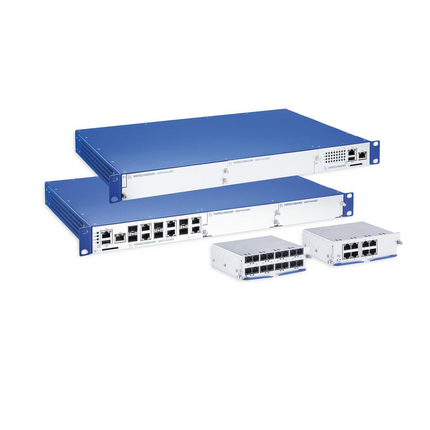

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1042-6T6ZSHH00V9HHSE3AUR 942 135-999-014

Product Code: 942 135-999-014

Explore the Hirschmann GRS1042, a robust modular managed rackmount switch designed for complex network solutions. This switch offers versatility with up to 28 ports, starting with a solid base of 12 fixed ports that include four GE/2.5 GE and two FE/GE SFP slots, complemented by six FE/GE TX ports. Expandability is at the forefront with two media module slots allowing an addition of 16 FE/GE ports. Engineered to operate reliably in temperatures ranging from 0°C to +60°C and equipped with dual power supply inputs supporting both DC (60-250V) and AC (110-240V), it ensures uninterrupted service. The GRS1042 comes with HiOS Layer 3 Advanced software, providing sophisticated unicast routing capabilities. Compliance with industry standards is guaranteed through CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 certifications, making this switch suitable for substation environments. Trust in Hirschmann's commitment to quality network switches that deliver performance and reliability where it matters most.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 18
No. of 2.5GB Ports 4
No. of Ethernet Ports 6
No. of Fiber Ports 22
Nominal Power (W) 32
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1042
Standards and Approvals IEC 61850-3
