Product Code: 942 123-999-002

Discover the Hirschmann GRS1030, a robust managed rack-mount switch designed for challenging environments. This network solution offers up to 28 ports, with a basic configuration of 4 combo FE/GE ports and 16 FE TX ports. It's expandable via one media module slot supporting an additional 8 FE/GE ports. Engineered to operate reliably between 0°C and +60°C, it accommodates a versatile power supply input ranging from 110 to 250 V DC and 110 to 240 V AC. The GRS1030 comes equipped with HiOS Layer 2 Standard software and meets CE, FCC, and EU Safety certifications, ensuring compliance with substation standards. Ideal for engineers seeking a high-performance switching solution in industrial settings.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 100Mb Ports	16
No. of 1GB Ports	12
No. of Ethernet Ports	16
No. of Fiber Ports	12
Nominal Power (W)	10.5
Rated Maximum Operational Voltage AC (V)	240
Rated Maximum Operational Voltage DC (V)	250
Rated Minimum Operational Voltage AC (V)	110
Rated Minimum Operational Voltage DC (V)	60
Brand	HIRSCHMANN
Degree of Protection	IP30
Mounting Type	Rack
Series	GRS1030
Standards and Approvals	IEC 61850-3

Ethernet Switches

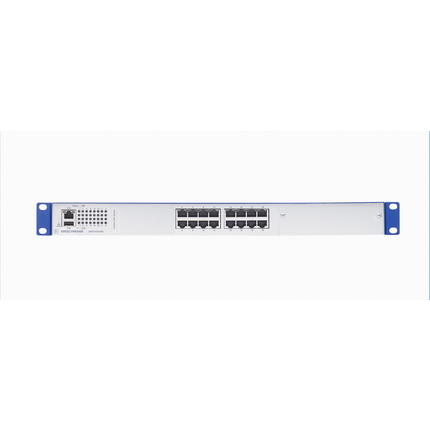

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1030-16T9SM9V9HHSE2SXX.X.XX 942 123-999-002

Product Code: 942 123-999-002

Technical Specifications
