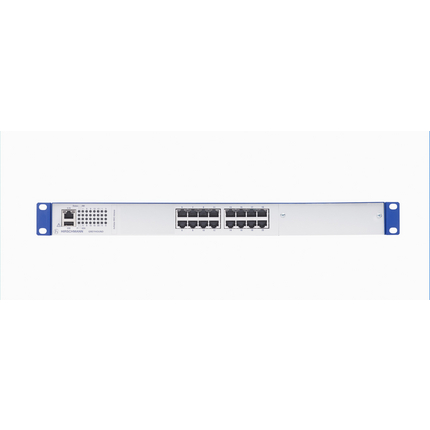

HIRSCHMANN MANAGED RACKMOUNT SWITCH GRS1030-16T9SCCV9HHSE2SXX.X.XX 942 123-999-001

Product Code: 942 123-999-001

Explore the Hirschmann GRS1030 series, a robust managed rack-mount switch designed for complex network solutions. This switch offers up to 28 ports, with a basic configuration of 4 FE/GE combo ports and 16 FE TX ports. It's engineered for flexibility with an expandable option via one media module slot supporting an additional 8 FE/GE ports. Built to withstand harsh environments, it operates efficiently between 0°C and +60°C. Dual power supply inputs range from 24 to 48 V DC, ensuring reliable performance. The GRS1030 comes equipped with HiOS Layer 2 Standard software and boasts certifications including CE, FCC, EU Safety, and Substation approvals. Ideal for engineers seeking a durable and scalable network switching solution.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 100Mb Ports 16
No. of 1GB Ports 12
No. of Ethernet Ports 16
No. of Fiber Ports 12
Nominal Power (W) 13
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type Rack
Series GRS1030
Standards and Approvals IEC 61850-3
