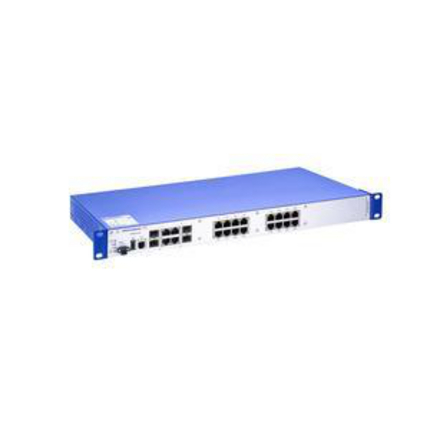

Electromagnetic Capability |
10 V/m (80-3000 MHz) |
|
Electrostatic Discharge (kV) |
4 kV Contact Discharge, 8 kV Air Discharge |
|
Frequency Range (Hz) |
50 - 60 |
|
Maximum Temperature (°C) |
50 |
|
Mean Time Between Failure (MTBF) |
131722 h |
|
Minimum Temperature (°C) |
0 |
|
Network Configuration |
any |
|
No. of Ethernet Ports |
16 |
|
No. of Fiber Ports |
4 |
|
Nominal Power (W) |
35 |
|
Operating Voltage Range |
100 - 240 V AC |
|
Power Output in BTU (IT)/h |
119 |
|
Rated Maximum Operational Voltage AC (V) |
240 |
|
Rated Minimum Operational Voltage AC (V) |
110 |
|
Relative Humidity |
10-95 % |
|
Resistance to Vibrations |
3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min
1 g, 8.4–150 Hz, 10 cycles, 1 octave/min |
|
Software Configuration |
AutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, DHCP Server: Option 43, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help |
|
Software Diagnostics |
Management Address Conflict Detection, Address Relearn Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump |
|
Software Industrial Profiles |
EtherNet/IP Protocol, PROFINET IO Protocol |
|
Software Management |
Dual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet |
|
Software Miscellaneous |
PoE (802.3AF), PoE+ (802.3AT), PoE+ Manual Power Management, Manual Cable Crossing |
|
Software Redundancy |
Advanced Ring Configuration for MRP, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Fast HIPER-Ring, Link Aggregation with LACP, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards, RSTP over MRP, VRRP, VRRP Tracking, HiVRRP (VRRP enhancements) |
|
Software Security |
IP-based Port Security, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, RADIUS VLAN Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Ingress MAC-based ACL, Ingress IPv4-based ACL, Ingress VLAN-based ACL, Access to Management restricted by VLAN, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, SNMP Logging, Local User Management, Remote Authentication via RADIUS |
|
Software Switchng |
Traffic Shaping, Disable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, CoS Queue Management, Egress Broadcast Limiter per Port, Flow Control (802.3X), Jumbo Frames, VLAN (802.1Q), Protocol-based VLAN, GARP VLAN Registration Protocol (GVRP), Double VLAN Tagging (QinQ), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier (v1/v2/v3) |
|
Software Time Synchronization |
PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, Buffered Real Time Clock, SNTP Client, SNTP Server |
|
Transition Type |
2 kV power line, 4 kV data line |
|
Brand |
HIRSCHMANN |
|
Cable Length (m) |
0 - 100 |
|
Degree of Protection |
IP20 |
|
Dimensions (mm) |
448W x 44H x 345D |
|
Mounting Type |
19" Control Cabinet |
|
No. of Pins |
2 |
|
Operational Temperature Range (°C) |
0 - 50 |
|
Power Consumption (W) |
35 |
|
Series |
MACH104 |
|
Standards and Approvals |
EN50121-4 |
|
Surge Voltage (kV) |
Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 4 kV Data Line |
|
Terminal Type |
1 x Plug-In Terminal Block |
|
Weight (g) |
4500 |
