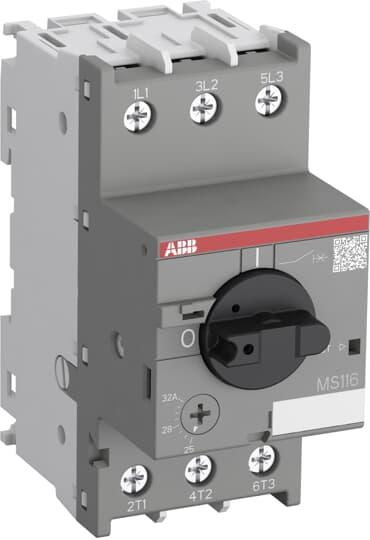

<p>The Manual Motor Starter is a robust solution designed for industrial and commercial applications, providing reliable protection and control for motors. With a rated voltage of 690 V and a current rating of 10 A, this starter ensures efficient performance under demanding conditions. Its power loss is minimal at just 9.3 W, making it an energy-efficient choice.</p><p>This device features a rotary handle actuator type, which offers intuitive operation for users. The screw terminal type ensures secure electrical connections with a tightening torque of 2 N-m, enhancing safety and reliability in your installations. The product&#39;s degree of protection is IP20, suitable for environments where dust ingress needs to be minimized.</p><p>Measuring at 45 mm in width, 97.8 mm in height, and 85.4 mm in depth, the compact design allows for easy integration into existing systems without occupying excessive space. It operates efficiently within a temperature range from -25 to 70 degrees Celsius and can be stored safely between -50 to 80 degrees Celsius.</p><p>Complying with standards such as IEC/EN 60947-1, IEC/EN 60947-2, IEC/EN 60947-4-1 as well as UL certifications like UL 60947-1 and UL 60947-4-1, this motor starter meets rigorous international quality benchmarks ensuring dependable performance across various regions including Australia.</p><p>The rated power capacity stands at an impressive 15 kW with a breaking capacity of up to 16 kA—an assurance of its ability to handle high-demand applications effectively while protecting against potential faults or overloads. The switching type employed here is thermomagnetic which provides dual protection by combining both thermal (overload) and magnetic (short-circuit) trip functions.</p><p>Featuring flexible connection options that accommodate wire sizes from flexible with ferrule ranging between one or two strands from .75 sq-mm up to six sq-mm; rigid wires are similarly accommodated ensuring versatility during installation processes across different setups whether using insulated or non-insulated ferrules.</p><p>For those concerned about operational flexibility—the current setting range lies between twenty-five amps up through thirty-two amps allowing adjustments based on specific requirements per application needs; meanwhile overload release settings fixed firmly at twenty-five amp provide added security against unexpected surges thus safeguarding connected equipment seamlessly over time maintaining optimal function consistently throughout usage cycles thanks largely due diligence paid towards designing components capable withstand rigors typical within fields reliant upon precision engineering solutions like these ones offered herein today!</p>
