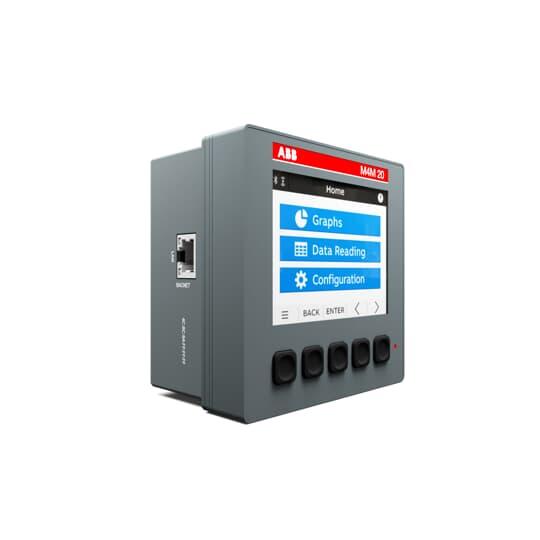

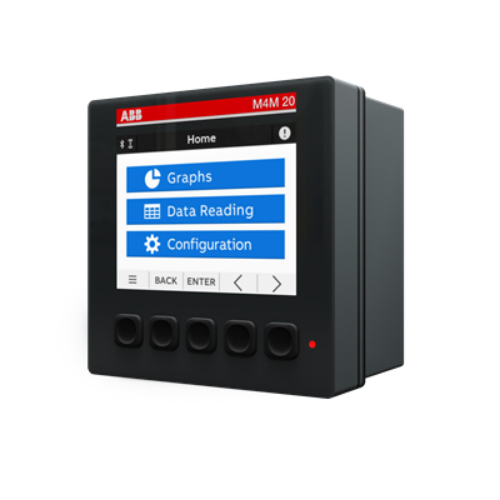

ABB M4M 20 ETHERNET NETWORK ANALYZER M4M 20 ETHERNET
Zoom
Zoom
Zoom
ABB M4M 20 ETHERNET NETWORK ANALYZER M4M 20 ETHERNET
Product Code: M4M 20 ETHERNET
The M4M 20 multifunction meter is a versatile device designed for engineers. It features 2 digital outputs, bluetooth and Modbus TCP/IP communication for seamless connectivity. The meter operates on an auxiliary supply of 48-240VAC/DC at 50/60Hz. With an accuracy class of 0.5S to IEC61557-12 and a degree of protection IP54, it ensures reliable and precise measurements. This meter offers multi-measurement capabilities, including currents, voltages, frequency, power factors, and timers. It supports metering for active energy, reactive energy, apparent energy, and 4 quadrants energy (Import/Export). Additionally, it provides complete monitoring and power quality analysis through data recording and logs. The M4M 20 features a graphic colour display with a user-friendly interface consisting of 5 pushbutton keys. Its panel mount design makes it easy to install in any compatible system with dimensions of 96x96mm. Overall, the M4M 20 multifunction meter is a powerful tool that combines accurate measurements with advanced connectivity options for efficient monitoring and analysis in various engineering applications.
Technical Specifications
Frequency Range (Hz)
50 - 60
I/O Option
2 digital outputs
Meter Type
Transformer connected
Net Weight (kg)
0.325
No. of Counter Positions
8
Power Consumption (VA)
10
Pulse Output Rate
1 … 999999
Type of Indicator
Digital
Voltage Range
50 … 400 V
Brand
ABB
Accuracy
Active Energy ±0.5%
Communication
Modbus TCP/IP, Bluetooth
Current Rating (A)
5
Degree of Protection
IP54
Dimensions (mm)
96 x 96 x 77
Mounting Type
Front Panel
No. of Phases
3
No. of Poles
3/4
Operational Temperature Range (°C)
-25 to +70
Rated Current (A)
5 (Max 6)
Rated Voltage (V)
3 x 230 (400)
Width in Number of Modular Spacings
5.5
Documents
Datasheet
IPD Product Catalogue V17
