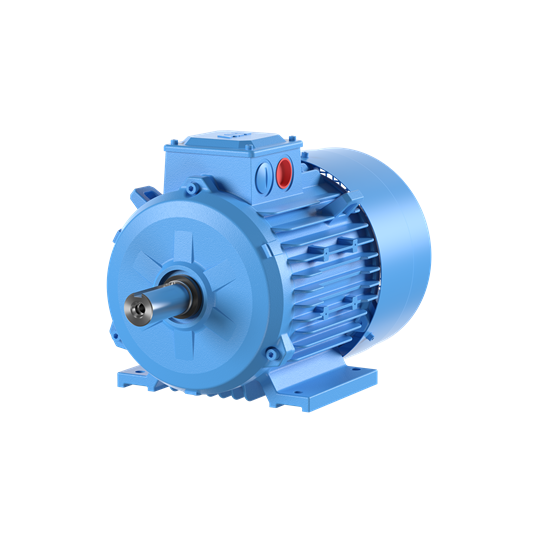

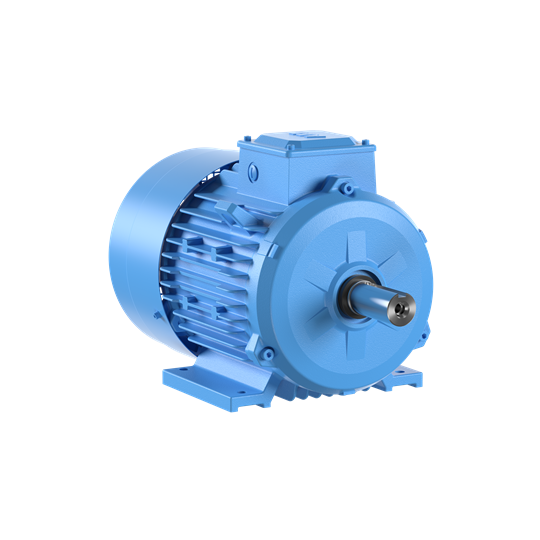

ABB 3GBA132210-ADD Low Voltage Motor IEC 132 Cast Iron 4P 3PH 5.5kW 400V B3 Foot Mount IP55

Product Code: 3GBA132210-ADD

  • 5.5 kW, 400 V motor with 11.4 A current
  • IP55 protection for harsh environments
  • Cast iron B3 foot mount design
  • Operates at 1463 RPM with 35.9 N-m torque
  • High efficiency of 89.6%
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Single-Speed General Performance Low Voltage Motor
Brand ABB
Ambient Temperature 40 deg C
Colour Munsell Blue
Connection Type DELTA - 415V in D & 690V in Y
Degree of Protection IP55
Depth 521 mm
Efficiency 89.6%
Frame Size IEC 132
Height 302 mm
Insulation Class ICLF
Material Cast Iron
Mounting Type B3 Foot Mount
Number of Poles 4
Phase 3
Power Factor 0.77
Rated Current 11.4 A
Rated Frequency 50 Hz
Rated Power 5.5 kW
Rated Voltage 400 V
Rotation Direction Both Sides
Sound Level 68 dBA
Speed Rating 1463 RPM
Torque Rating 35.9 N-m
Weight 67 kg
Width 262 mm

Description

<p>When it comes to selecting a reliable and efficient motor for your industrial or commercial applications, the General Performance Motor stands out as a solid choice. Built with precision and durability in mind, this motor is designed to meet demanding operational requirements while ensuring optimal performance.</p><p>Operating at a rated voltage of 400 V and a frequency of 50 Hz, this motor delivers consistent power with its 5.5 kW output. It draws a rated current of 11.4 A, making it suitable for various medium-duty applications. The efficiency rating of 89.6% ensures that energy consumption is kept in check without compromising on performance.</p><p>Constructed from robust cast iron, the motor&amp;#39;s frame size adheres to IEC 132 standards, providing excellent mechanical strength and longevity even under challenging conditions. Its IP55 degree of protection indicates that the motor is well-protected against dust ingress and low-pressure water jets from any direction, making it ideal for environments where exposure to moisture or particulates is likely.</p><p>The B3 foot mount design facilitates straightforward installation on flat surfaces, offering flexibility in positioning within your setup. With dimensions measuring a width of 262 mm, height of 302 mm, and depth of 521 mm, the compact form factor allows easy integration into existing systems without requiring significant space adjustments.</p><p>In terms of operational environment suitability, this motor can withstand ambient temperatures up to 40&amp;#176;C while maintaining stable functionality. Weighing in at 67 kg, it&amp;#39;s sturdy enough for stability yet manageable during installation or relocation processes.</p><p>Performance-wise, the motor boasts a torque rating of 35.9 N-m coupled with a speed rating of 1463 RPM—ideal for applications requiring precise control over rotational speed and torque delivery. Its power factor stands at an impressive 0.77 which aids in reducing power loss across electrical systems.</p><p>Designed with versatility in mind, the rotation direction capability on both sides enhances adaptability across various machinery configurations—perfect for dynamic industrial settings where changeability can be crucial.</p><p>Sound levels are maintained at an unobtrusive level with only 68 dBA emitted during operation—ensuring compliance with workplace noise regulations while minimizing auditory distractions for personnel working nearby.</p><p>Finally painted in Munsell Blue—a color often associated with reliability—the aesthetic appeal complements its functional prowess seamlessly blending into any professional setting aesthetically pleasingly without drawing unnecessary attention away from other critical components within your facility&amp;#39;s infrastructure framework; all backed by ICLF insulation class ensuring thermal endurance over prolonged usage periods thus safeguarding internal components against overheating risks effectively prolonging lifespan further enhancing return investment long-term perspective overall satisfaction guaranteed users alike seeking dependable solutions today tomorrow beyond alike assuredly confidently choosing best option available market currently present time indeed!</p>
