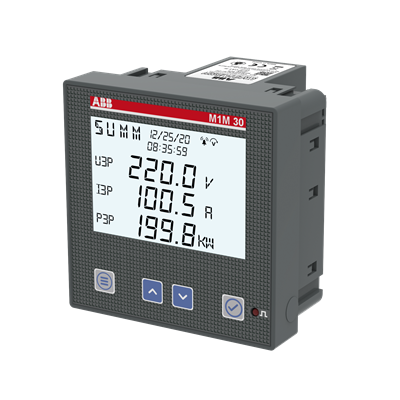

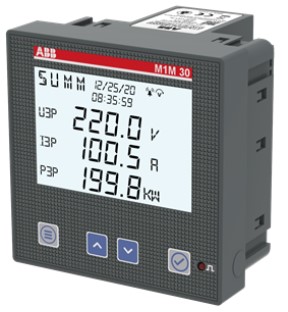

ABB M1M 30 I/O MULTIFUNCTIONMETER M1M 30 I/O

Product Code: M1M 30 I/O

The Multifunction meter is designed for 100-230 V AC/DC power systems. It offers active energy class 1 accuracy and supports Modbus RTU communication as well as 2 digital inputs/outputs. The bright backlit LCD displays provide clear visualization of the measurements, which can be easily accessed through self-guided menus. With its compact design, the meter is reliable in measuring electrical parameters and offers a complete set of power quality analysis, including measurement up to the 40th harmonic. It also has internal memory for datalogging, making it suitable for demand management applications. The dimensions of the meter are 96mm (W) x 96mm (H) x 85mm (D), and it has a degree of protection IP51 (Front)/IP20 (Terminals).

Technical Specifications

Brand ABB
Accuracy Class Active Energy
Meter Type Digital
Net Weight (kg) 0.33
No. of Digital Inputs 2
No. of Digital Outputs 2
Accuracy ±0.5%
Communication Modbus RTU
Degree of Protection IP51
Dimensions (mm) 96 X 96 X 77
Display Screen Type LCD Display
Mounting Type Front Panel
Operational Temperature Range (°C) -5 to +55
