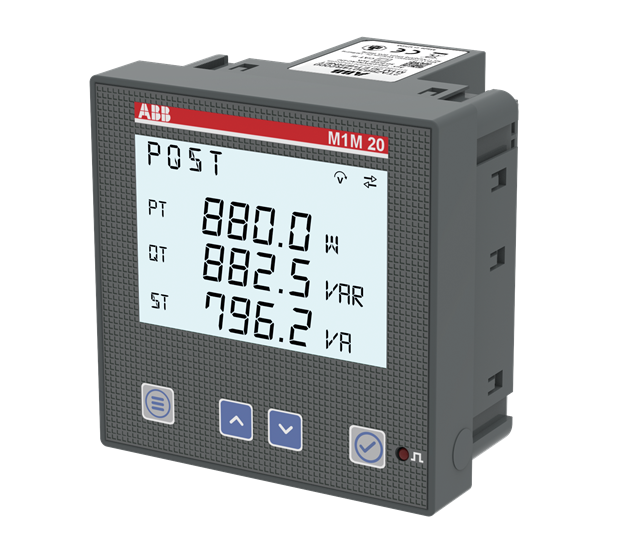

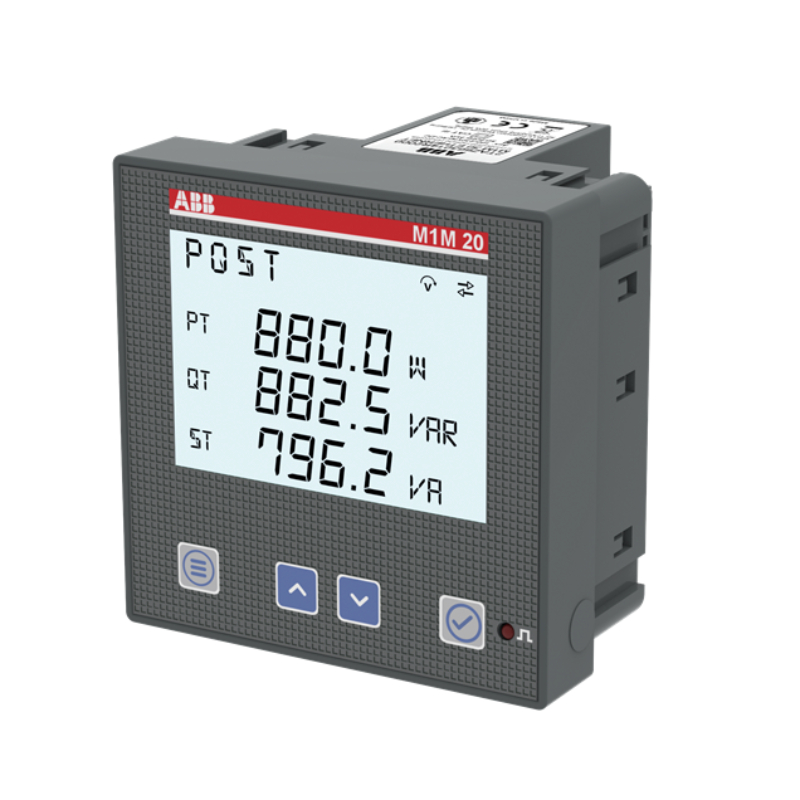

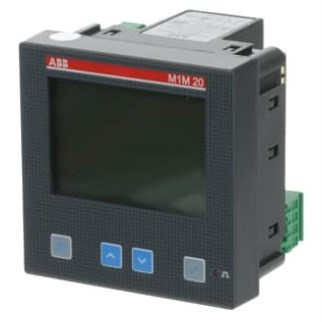

ABB M1M 20 MULTIFUNCTION METERWITH AUX SUPPLY 100-230V AC/DCLCD DISPLAY M1M 20

Product Code: M1M 20

The Multifunction meter is designed for both AC and DC power systems, with a voltage range of 100-230 V. It offers accurate measurements with an active energy class 1 accuracy rating. The bright backlit LCD displays provide clear visualization of the measurements, and the self-guided menus make it easy to navigate. With its compact design, the meter is space-saving and convenient to use. It is reliable in measuring electrical parameters and comes with a complete set of power quality features, including main KPIs and datalogger functionality on flash memory. The dimensions of the meter are 96 mm (width) x 96 mm (height) x 85 mm (depth). It has a degree of protection IP51 for the front and IP20 for the terminals, ensuring its durability in different environments.

Technical Specifications

Brand ABB
Accuracy Class Active Energy
Meter Type Digital
Net Weight (kg) 0.315
Accuracy ±1%
Communication None
Degree of Protection IP51
Dimensions (mm) 96 X 96 X 77
Display Screen Type LCD Display
Mounting Type Front Panel
Operational Temperature Range (°C) -5 to +55
