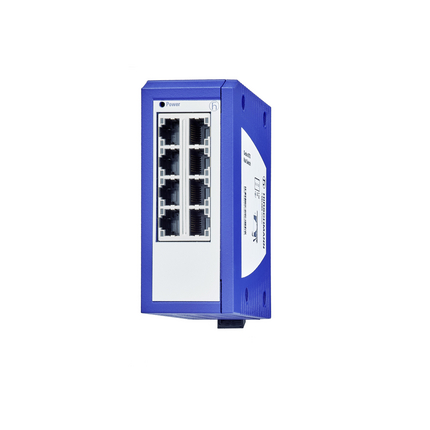

Hirschmann 942 291-001 Ethernet Switch 18-32VDC

Product Code: 942 291-001

  • Managed type with 3.9 W rated power.
  • Operates on 18-32 VDC voltage.
  • DIN Rail mounting for easy installation.
  • Compact size: 45.4 mm width, 110 mm height, 82 mm depth.
  • IP30 protection against dust and particles.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Ethernet Switch
Brand HIRSCHMANN
Degree of Protection IP30
Depth 82 mm
Height 110 mm
Humidity 5-95%
Mounting Type DIN Rail
Number of Pins 3
Operational Temperature -40 to 60 deg C
Rated Power 3.9 W
Rated Voltage 18-32 VDC
Relative Humidity 5-95 %
Software Configuration BOOTP/DHCP, HiDiscovery
Software Diagnostics Device status indication (LEDs), Log-File, RMON (1) statistics, Simple interface statistics, Topology Discovery according to IEEE 802.1AB (LLDP), Syslog
Software Management HTML5 Web-Interface, TFTP config file/firmware transfer, SNMP V1/V2/V3
Software Redundancy RSTP (IEEE 802.1D-2004), MRP Client
Software Security SNMPv3 (authNoPriv), Possibility to disable each port, SSH, SSL
Storage Temperature -40 to 85 deg C
Terminal Type 1 x Plug-In Terminal Block
Transition Type 2 kV Power Line, 2 kV Data Line
Width 45.4 mm

Description

<p>In the world of industrial and commercial applications, choosing the right components can significantly influence both efficiency and reliability. For those seeking a dependable solution, this Managed device stands as a practical choice. With its robust specifications tailored for demanding environments, it offers both versatility and durability.</p><p>This managed device operates efficiently with a rated power of 3.9 W within a voltage range of 18-32 VDC, making it suitable for various power supply configurations. Its compact dimensions—45.4 mm in width, 110 mm in height, and 82 mm in depth—allow for easy integration into existing setups without requiring significant space modifications.</p><p>The DIN rail mounting type ensures straightforward installation while maintaining stability within electrical panels or enclosures. This feature is particularly beneficial in industrial settings where ease of access and secure placement are essential.</p><p>Engineered to withstand harsh conditions, this product boasts an operational temperature range from -40 to 60 degrees Celsius, ensuring reliable performance even in extreme climates. Additionally, its storage temperature capability extends from -40 to 85 degrees Celsius, providing flexibility during transport or downtime periods.</p><p>Humidity tolerance is another critical aspect of its design; withstanding levels from 5% to as high as 95%, this device remains functional across diverse environmental conditions without compromising performance.</p><p>The IP30 degree of protection indicates that while the unit is safeguarded against solid objects greater than 2.5 mm (such as tools or wires), it’s intended for use in environments where moisture exposure is minimal—a common requirement in controlled indoor settings.</p><p>Overall, this managed device balances technical prowess with practical design considerations. It serves professionals who demand reliability without unnecessary complexity or compromise on space efficiency. Whether upgrading existing systems or embarking on new projects, these specifications provide confidence that your requirements will be met consistently and effectively.</p>

Documents

  • Supplier Datasheet

  • IPD Product Catalogue

    IPD Product Catalogue V17
