ABB LS32P51B11 LIMIT SWITCH LS32P51B11

Product Code: LS32P51B11

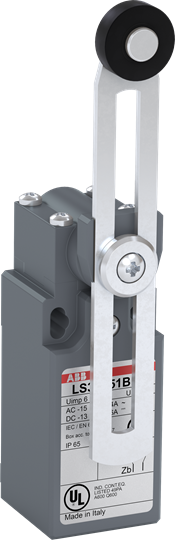

LS32P51B11 is a 30 mm wide, standard Limit Switch made of fiber-glass reinforced UL-V0 material, with 2 mounting holes at the top, 1 ISO M16x1.5 cable entry on the bottom, adjustable plastic roller lever (Ã 18 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts

Technical Specifications

Design of Control Element Plunger
Minimum Temperature (°C) -25
Rated Operational Current AC-15 130V (A) 5.5
Rated Operational Current AC-15 230V (A) 3.1
Rated Operational Current DC-13 110V (A) 0.6
Rated Operational Current DC-13 24V (A) 6
Rated Operational Current DC-13 250V (A) 0.4
Sensor Height (mm) 98.5
Sensor Length (mm) 45.5
Sensor Width (mm) 30
Switching Type Quick-break Switch
Brand ABB
Actuator Type Adjustable Plastic Roller Lever (Ø18 mm)
Connection Type Cable Entry Metrical
Contacts 1NO+1NC - Snap Action
Degree of Protection IP65
Housing Material Plastic
Material Fiber-glass Reinforced UL-V0
No. of Normally-closed Contacts 1
No. of Normally-open Contacts 1
Width (mm) 30
