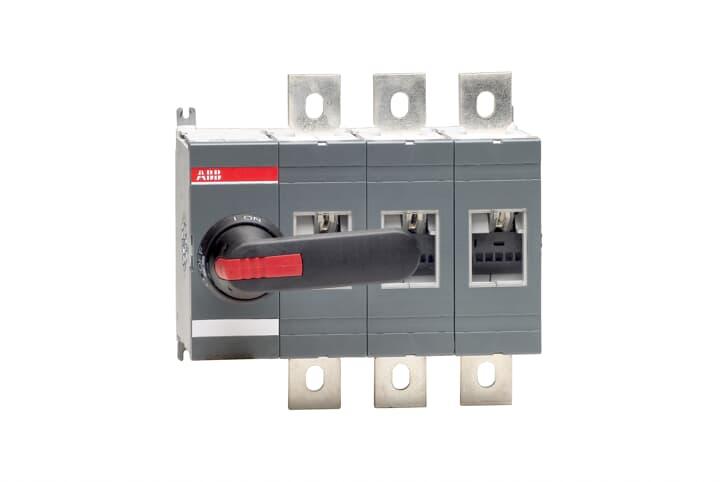

Control Element Colour |
Black |
|
Degree of Protection - Handle |
IP65 |
|
Handle Dimensions (mm) |
158W x 45H x 66D |
|
Handle Material |
Plastic |
|
Interlockable |
Yes |
|
Main Circuit Electrical Connection |
Bolt Connection |
|
Operating Mechanism |
Mechanism at the End of the Switch 03 (Left Side) |
|
Operational Current AC-22A @ 380-415V (A) |
800 |
|
Operational Current AC-22A @ 500V (A) |
800 |
|
Operational Current AC-22A @ 690V (A) |
800 |
|
Operational Current AC-23A @ 380-415V (A) |
800 |
|
Operational Current AC-23A @ 500V (A) |
800 |
|
Operational Power AC-23A @ 400-415V (kW) |
450 |
|
Operational Power AC-23A @ 500V (kW) |
560 |
|
Operational Power AC-23A @ 690V (kW) |
800 |
|
Position of Mechanism |
Mechanism at the End of Switch 03 (Left Side) |
|
Position of Operation |
Front Operated |
|
Rated Operational Power AC-23A 400-415 V (kW) |
450 |
|
Shaft Dimensions (mm) |
12W x 12H x 185D |
|
Terminal Width (mm) |
39 |
|
Type of Handle |
Pistol |
|
Type of Mounting |
Base Mount |
|
Voltage (V) |
1000 |
|
Brand |
ABB |
|
Impulse Withstand Voltage (kV/1.2µS) |
12 |
|
Cable Cross Section (mm²) |
2 x 240 |
|
Conventional Free-Air Thermal Current - Ith (A) |
800 |
|
Conventional Thermal Current - Ithe (A) |
800 |
|
Dimensions (mm) |
266W x 250H x 140D |
|
Handle Colour |
Black |
|
Handle Length (mm) |
125 |
|
Handle Type |
Pistol |
|
Icw (kA/1s) - Short-time Withstand Current Rating |
20 |
|
Included |
Handle, Shaft |
|
Maximum Operational Voltage AC (V) |
1000 |
|
Mode of Operation |
Front operated |
|
Mounting Type |
Base Mount |
|
NEMA Degree of Protection |
1 |
|
No. of Poles |
3 |
|
Operational Current AC-23A @ 690V (A) |
800 |
|
Poles |
3P |
|
Pollution Degree |
3 |
|
Power Loss (W) |
40/Pole |
|
Rated Impulse Withstand Voltage (kV) |
12 |
|
Rated Insulation Voltage (V) |
1000 |
|
Rated Operational Current AC-21A 415V (A) |
800 |
|
Rated Operational Current AC-22A 380-415V (A) |
800 |
|
Rated Operational Current AC-22A 500V (A) |
800 |
|
Rated Operational Current AC-22A 690V (A) |
800 |
|
Rated Operational Current AC-23A 380-415V (A) |
800 |
|
Rated Operational Current AC-23A 500V (A) |
800 |
|
Rated Operational Current AC-23A 690V (A) |
800 |
|
Rated Operational Power AC-23A 380-415V (kW) |
450 |
|
Rated Operational Power AC-23A 500V (kW) |
560 |
|
Rated Operational Power AC-23A 690V (kW) |
800 |
|
Rated Operational Voltage (V) |
1000 |
|
Rated Short-Time Withstand Current - Icw (kA) |
20 |
|
Rated Short-time Withstand Current - Icw (kA/1s) |
20 |
|
Rated Uninterrupted Current - Iu (A) |
800 |
|
Sizes (mm) |
266W x 250H x 140D |
|
Standards and Approvals |
IEC 60947-3 |
|
Suitable For |
Distribution Board Installation |
|
Terminal Type |
Lug terminals |
|
Type |
Main Switch |
