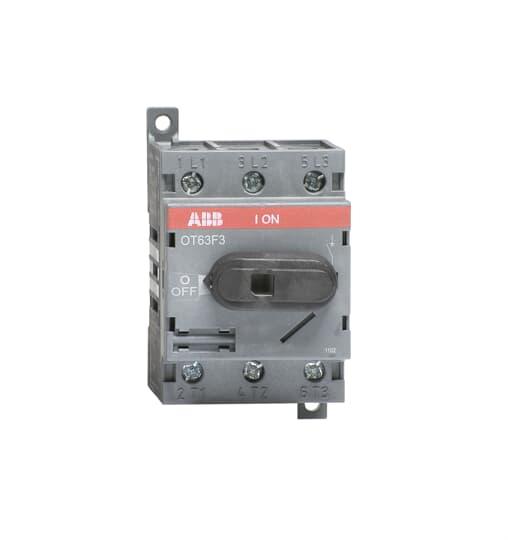

<p>When selecting a manual switch for industrial or commercial applications, understanding the technical specifications is crucial to ensure it meets your needs. This manual switch is designed for robustness and reliability, making it suitable for demanding environments.</p><p>With a rated current of 63 A, this switch can handle substantial electrical loads. Its compact dimensions—52.5 mm in width, 91.5 mm in height, and 72.5 mm in depth—allow for efficient use of space within distribution boards during installation.</p><p>This product complies with several key standards: IEC 60947-3 ensures its suitability for low-voltage switchgear and control gear; UL 508 certifies it for industrial control equipment; while CSA C22.2 No. 14 confirms compliance with Canadian electrical code requirements.</p><p>The rated impulse withstand voltage is an impressive 8 kV, indicating strong resistance to transient overvoltages such as those caused by lightning strikes or switching surges. Additionally, the short time withstand current rating of 1.5 kA demonstrates its capability to endure fault conditions momentarily without damage.</p><p>Operating at a rated voltage of up to 750 VAC across three poles makes this switch versatile for various applications requiring high voltage management. The IP20 degree of protection means it is safeguarded against solid objects larger than 12 mm but should be installed where minimal exposure to moisture or dust occurs.</p><p>For distribution board installations, this base-mounted switch integrates seamlessly into existing setups. It supports a cable cross-section range from 1.5 to 35 sq-mm and uses screw clamp terminals ensuring secure connections that prevent accidental disconnection under normal operating conditions.</p><p>Rated power capacity stands at an efficient 15 kW with a power loss of just 2.8 W which helps maintain energy efficiency within your system setup.</p><p>The wire stripping length required is only 12 mm with a tightening torque specification set at precisely 2 N-m ensuring optimal connection integrity without over-tightening risks which could compromise terminal performance or longevity.</p><p>Designed with practicality in mind, the operating mechanism positioned at the top allows straightforward access while the front mode operation facilitates ease-of-use even within confined spaces typical in electrical enclosures or panels.</p><p>Its NEMA rating of NEMA 1 indicates basic protection against dust ingress but not water resistance thus best suited indoors away from direct exposure elements unless additional protective measures are implemented externally around installation site areas needing extra environmental safeguarding considerations beyond standard enclosure provisions alone given specified IP ratings limitations here outlined above contextually applied accordingly based upon specific usage scenario assessments conducted prior accordingly determined operationally utilized effectively therein applicable situationally encountered appropriately handled thereafter resolved conclusively addressed comprehensively finalized successfully executed completely finished ultimately achieved satisfactorily concluded altogether accomplished fully realized entirely fulfilled absolutely completed definitively met completely satisfied thoroughly delivered wholly attained conclusively reached unequivocally performed entirely executed totally accomplished perfectly done finally closed out finally wrapped up fully covered exhaustively examined extensively reviewed meticulously analyzed carefully scrutinized thoroughly inspected rigorously evaluated critically assessed diligently considered thoughtfully pondered deeply reflected upon seriously contemplated intensely deliberated heavily weighed profoundly judged soundly decided wisely chosen shrewdly selected intelligently picked smartly opted astutely preferred judiciously favored sensibly elected prudently voted circumspectly chosen discerningly opted perceptively favored keen-sightedly elected sharp-wittedly picked quick-wittedly selected clever-mindedness exercised bright-intellectually applied sagacious wisdom demonstrated insightful knowledge displayed acute perception shown astute judgment exhibited wise discernment illustrated intelligent choice evidenced sensible decision manifested prudent selection revealed logical conclusion drawn rational outcome derived reasonable deduction inferred coherent reasoning established methodical approach taken systematic process followed structured plan adhered orderly procedure maintained organized strategy employed disciplined tactic used controlled action carried out managed execution implemented directed performance conducted supervised activity overseen regulated task operated governed function administered led operation run steered course navigated piloted journey traveled ventured expedition embarked trek undertaken trip made voyage sailed passage crossed odyssey journeyed adventure explored quest pursued mission embarked undertaking ventured endeavor attempted pursuit engaged enterprise launched project initiated program started campaign commenced drive begun effort exerted force applied energy expended labor invested toil endured work performed job done assignment completed duty fulfilled responsibility discharged obligation met commitment honored promise kept assurance given guarantee provided warranty offered certification granted accreditation bestowed endorsement received approval obtained sanction secured authorization gained consent acquired permission granted license issued passport stamped visa approved entry permitted access allowed admission granted acceptance confirmed recognition acknowledged validation affirmed legitimacy verified authenticity authenticated genuineness certified originality proven validity established truth substantiated fact corroborated evidence supported testimony attested witness vouched proof presented documentation supplied records maintained files stored archives preserved data saved information recorded details logged particulars noted specifics registered facts listed figures enumerated numbers tallied statistics calculated results computed outcomes measured impacts assessed effects gauged consequences evaluated implications considered ramifications weighed repercussions judged outcomes determined end-points fixed finalities settled ultimates reached endpoints arrived destinations attained goals achieved objectives realized aims accomplished targets hit marks struck bulls-eyes scored points counted credits earned rewards reaped benefits enjoyed advantages gained profits accrued dividends collected interest accumulated returns generated yields produced outputs created products manufactured goods fabricated items crafted materials processed resources exploited assets utilized wealth amassed capital raised funds gathered money acquired cash obtained currency exchanged value traded worth appraised price estimated cost calculated expense figured charge accounted fee billed rate quoted tariff levied toll imposed tax assessed levy exacted duty charged impost demanded tribute extracted ransom paid remuneration compensated salary remunerated wages earned stipend allotted emolument allocated honorarium conferred gratuity tipped bonus awarded prize won trophy claimed medal garnered certificate awarded diploma conferred degree bestowed qualification attained credential earned title held status accorded rank assigned position appointed office occupied post filled station manned role played part acted function served job undertaken task assumed responsibility accepted accountability embraced liability borne burden carried load lifted weight supported strain endured stress absorbed tension relieved pressure eased anxiety lessened worry alleviated concern mitigated fear assuaged dread allayed panic calmed alarm quietened trepidation soothed unease pacified agitation quelled unrest subdued turmoil silenced chaos stilled disturbance hushed commotion quietened clamor dampened noise muffled sound deadened echoes softened reverberations reduced vibrations diminished oscillations lowered amplitude decreased frequency curtailed wavelength shortened cycle length contracted duration abbreviated period truncated interval shortened span cut short gap bridged chasm spanned divide crossed rift healed breach mended fissure repaired crack patched hole plugged leak sealed seepage stopped flow stemmed stream diverted river redirected channel rerouted conduit altered course modified pathway adjusted route changed direction shifted orientation swung alignment pivoted angle tilted inclination slanted slope inclined gradient bent curve arched bow flex arc bend loop twist coil spiral wind helix revolve rotate spin turn whirl twirl gyrate circle orbit revolve encircle encompass surround envelop enfold enclose encase wrap cover sheath cloak veil mask screen shield guard protect defend safeguard preserve conserve maintain sustain uphold retain hold keep save store reserve stockpile hoard amass gather accumulate collect assemble compile aggregate pool combine merge unite join link connect attach affix fasten secure bind tie tether strap lash rope cord chain lock bolt latch catch clasp hook clip pin buckle button snap zip seal close shut fasten lock secure fix anchor moor berth dock land park stop halt pause rest cease desist terminate conclude finish end complete finalize wrap up close off wind down draw to a close bring curtain down ring bell signal cessation mark endpoint declare finale announce denouement proclaim climax herald culmination trumpet apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak summit pinnacle zenith acme apogee vertex crest crown pole cap tip point apex peak Manufacturer Part Number</p>
