Degree of Protection - Handle |
IP65 |
|
Handle Dimensions (mm) |
65W X 65H X 59D |
|
IP Rating of Handle |
IP65 |
|
Operating Mechanism |
Mechanism on Top of the Switch |
|
Operational Current AC-22A @ 380-415V (A) |
63 |
|
Operational Current AC-22A @ 500V (A) |
63 |
|
Operational Current AC-22A @ 690V (A) |
63 |
|
Operational Current AC-23A @ 380-415V (A) |
63 |
|
Operational Current AC-23A @ 500V (A) |
45 |
|
Operational Power AC-23A @ 400-415V (kW) |
22 |
|
Operational Power AC-23A @ 500V (kW) |
22 |
|
Operational Power AC-23A @ 690V (kW) |
15 |
|
Position of Mechanism |
Mechanism on Top of the Switch |
|
Position of Operation |
Front Operated |
|
Rated Operational Power AC-23A 400-415 V (kW) |
22 |
|

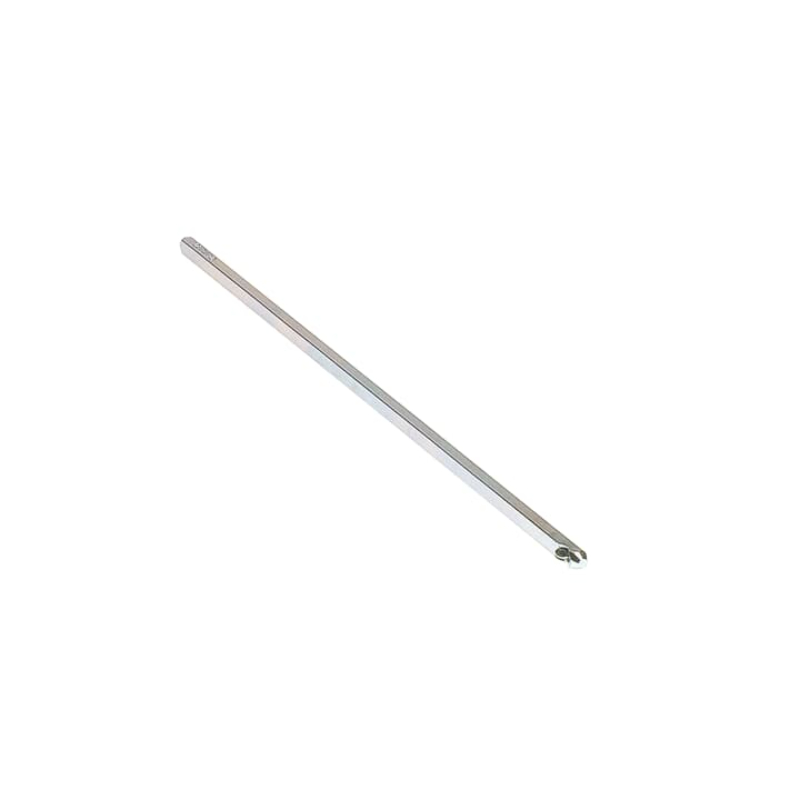

Shaft Dimensions (mm) |
6W X 6H X 180D |
|
Type of Handle |
Selector |
|
Type of Mounting |
Base Mount |
|
Voltage (V) |
750 |
|
Brand |
ABB |
|
Impulse Withstand Voltage (kV/1.2µS) |
8 |
|
Cable Cross Section (mm²) |
1.5-35 |
|
Conventional Free-Air Thermal Current - Ith (A) |
63 |
|
Conventional Thermal Current - Ithe (A) |
63 |
|
Current Rating (A) |
63 |
|
Degree of Protection |
IP20 (Front) |
|
Dimensions (mm) |
65W X 72H X 69D |
|
Handle Colour |
Red/Yellow |
|
Handle Type |
Selector |
|
Icw (kA/1s) - Short-time Withstand Current Rating |
1.5 |
|
Included |
Handle |
|
Includes |
Handle |
|
Mode of Operation |
Front Operated |
|
Mounting Type |
Base Mount |
|
No. of Poles |
3P |
|
Operational Current AC-23A @ 690V (A) |
20 |
|
Poles |
3P |
|
Pollution Degree |
3 |
|
Power Loss (W) |
2.8/Pole |
|
Rated Current (A) |
63 |
|
Rated Impulse Withstand Voltage (kV) |
8 |
|
Rated Insulation Voltage (V) |
750 |
|
Rated Operational Current AC-22A 380-415V (A) |
63 |
|
Rated Operational Current AC-22A 500V (A) |
63 |
|
Rated Operational Current AC-22A 690V (A) |
63 |
|
Rated Operational Current AC-23A 380-415V (A) |
63 |
|
Rated Operational Current AC-23A 500V (A) |
45 |
|
Rated Operational Current AC-23A 690V (A) |
20 |
|
Rated Operational Power AC-23A 500V (kW) |
22 |
|
Rated Operational Power AC-23A 690V (kW) |
15 |
|
Rated Operational Voltage (V) |
750 |
|
Rated Short-time Withstand Current - Icw (kA/1s) |
1.5 |
|
Sizes (mm) |
65W x 72H x 69D |
|
Standards and Approvals |
IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
|
Terminal Type |
Screw Terminals |
