Main Circuit Electrical Connection	Screw Connection
Product Quantity	10
Rated Operational Power AC-23A 400-415 V (kW)	11
Brand	ABB
Cable Cross Section (mm²)	0.75 - 10
Conventional Free-Air Thermal Current - Ith (A)	40
Conventional Thermal Current - Ithe (A)	40
Degree of Protection	IP20
Dimensions (mm)	43W x 54H x 52D
Maximum Operational Voltage AC (V)	750
Mode of Operation	Front Operated
Mounting Type	Door Mount
NEMA Degree of Protection	1
No. of Poles	3
Pollution Degree	3
Power Loss (W)	1.6/Pole
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	750
Rated Operational Current AC-21A 415V (A)	40
Rated Operational Current AC-22A 380-415V (A)	40
Rated Operational Current AC-22A 500V (A)	40
Rated Operational Current AC-22A 690V (A)	40
Rated Operational Current AC-23A 380-415V (A)	23
Rated Operational Current AC-23A 500V (A)	23
Rated Operational Current AC-23A 690V (A)	12
Rated Operational Power AC-23A 380-415V (kW)	11
Rated Operational Power AC-23A 500V (kW)	11
Rated Operational Power AC-23A 690V (kW)	11
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	0.5
Rated Short-time Withstand Current - Icw (kA/1s)	0.5
Rated Uninterrupted Current - Iu (A)	40
Standards and Approvals	IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Suitable For	Distribution Board Installation
Terminal Type	Screw Terminals
Type	Main Switch

Switch Disconnectors

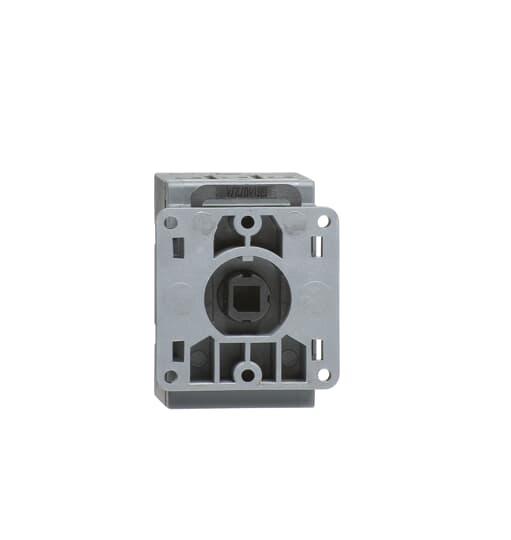

ABB OT40FT3 SWITCH-DISCONNECTOR OT40FT3
