Main Circuit Electrical Connection	Screw Connection
Operating Mechanism	Mechanism on Top of the Switch
Product Quantity	10
Rated Operational Power AC-23A 400-415 V (kW)	9
Brand	ABB
Cable Cross Section (mm²)	0.75 - 10
Conventional Free-Air Thermal Current - Ith (A)	32
Conventional Thermal Current - Ithe (A)	32
Degree of Protection	IP20
Dimensions (mm)	35W x 68H x 56D
Maximum Operational Voltage AC (V)	750
Mode of Operation	Front Operated
Mounting Type	Base Mount
NEMA Degree of Protection	1
No. of Poles	3
Pollution Degree	3
Power Loss (W)	0.6/Pole
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	750
Rated Operational Current AC-21A 415V (A)	25
Rated Operational Current AC-22A 380-415V (A)	25
Rated Operational Current AC-22A 500V (A)	25
Rated Operational Current AC-22A 690V (A)	25
Rated Operational Current AC-23A 380-415V (A)	20
Rated Operational Current AC-23A 500V (A)	20
Rated Operational Current AC-23A 690V (A)	11
Rated Operational Power AC-23A 380-415V (kW)	9
Rated Operational Power AC-23A 500V (kW)	9
Rated Operational Power AC-23A 690V (kW)	9
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	0.5
Rated Short-time Withstand Current - Icw (kA/1s)	0.5
Rated Uninterrupted Current - Iu (A)	32
Standards and Approvals	IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Suitable For	Distribution Board Installation
Terminal Type	Screw Terminals
Type	Main Switch

Switch Disconnectors

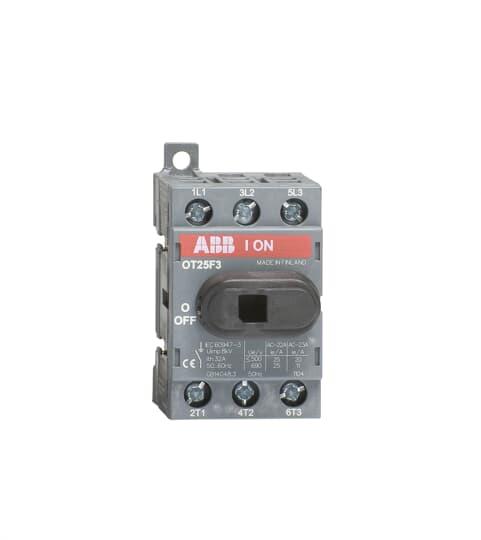

ABB OT25F3 SWITCH-DISCONNECTOR OT25F3
