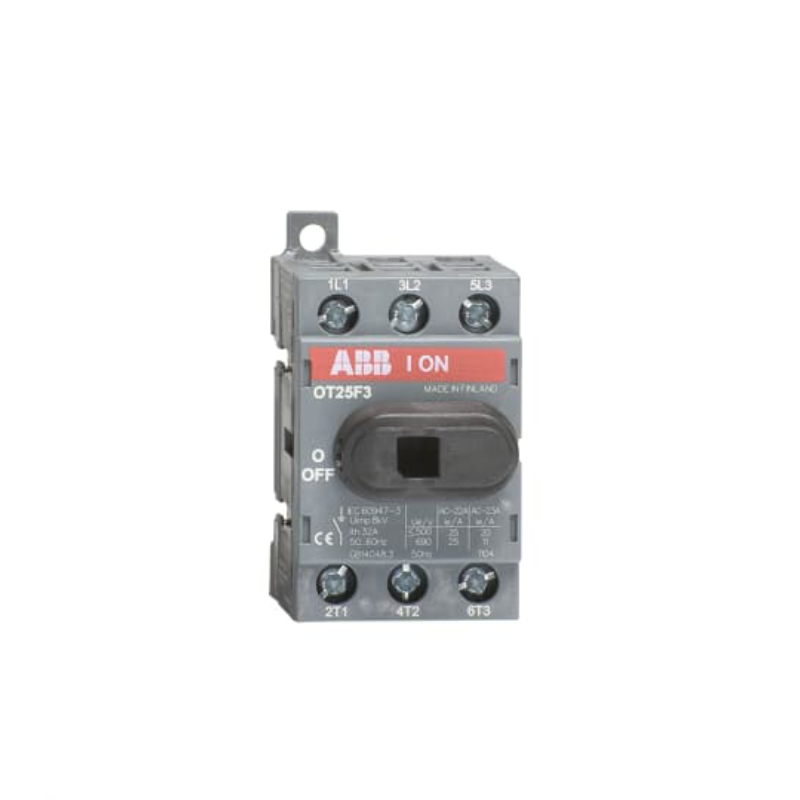

ABB OT25B22R3-K LOAD BREAK SWITCH 25A 3P BASE MOUNT KIT 22mm FIXING

Product Code: OT25B22R3-K

The Load Break Switch is a 25A, 3P AC22/23 (415V) switch. It comes with a base mount ABB kit and features a red and yellow door handle. The switch has a fixing size of 22mm and is IP65 rated. It is compatible with cables ranging from 0.75mm² to 10mm².

Technical Specifications

Degree of Protection - Handle IP65
Handle Dimensions (mm) 65W X 65H X 59D
IP Rating of Handle IP65
Operating Mechanism Mechanism on Top of the Switch
Operational Current AC-22A @ 380-415V (A) 25
Operational Current AC-22A @ 500V (A) 25
Operational Current AC-22A @ 690V (A) 25
Operational Current AC-23A @ 380-415V (A) 20
Operational Current AC-23A @ 500V (A) 20
Operational Power AC-23A @ 400-415V (kW) 9
Operational Power AC-23A @ 500V (kW) 9
Operational Power AC-23A @ 690V (kW) 9
Position of Mechanism Mechanism on Top of the Switch
Position of Operation Front Operated
Rated Operational Power AC-23A 400-415 V (kW) 9

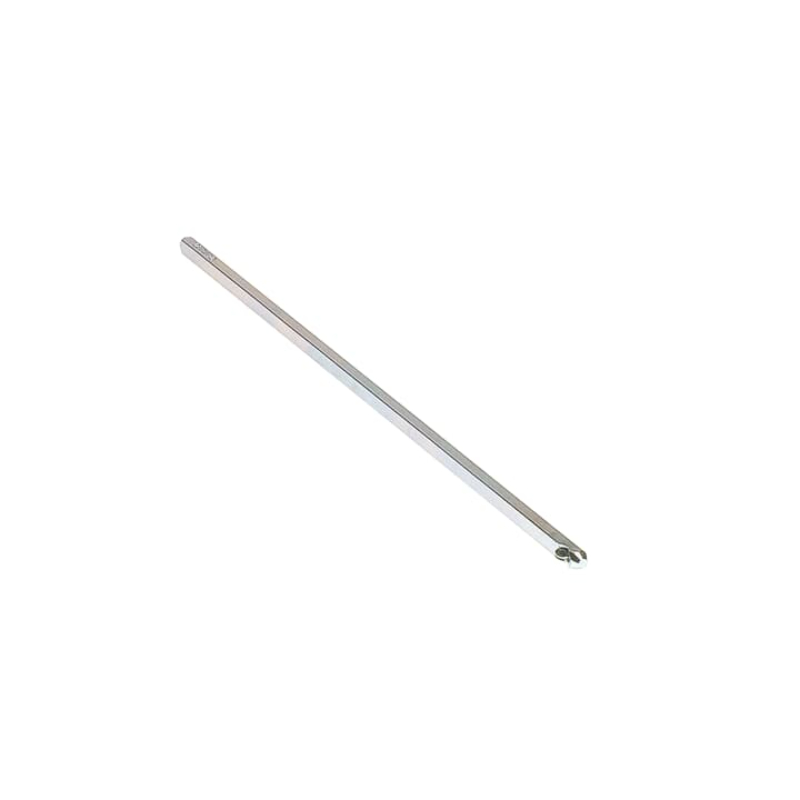

Shaft Dimensions (mm) 6W X 6H X 180D
Type of Handle Selector
Type of Mounting Base Mount
Voltage (V) 750
Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 8
Cable Cross Section (mm²) 0.75-10
Conventional Free-Air Thermal Current - Ith (A) 32
Conventional Thermal Current - Ithe (A) 32
Current Rating (A) 25
Degree of Protection IP20 (Front)
Dimensions (mm) 43W X 54H X 52D
Handle Colour Red/Yellow
Handle Type Selector
Icw (kA/1s) - Short-time Withstand Current Rating 0.5
Included Handle
Includes Handle
Mode of Operation Front Operated
Mounting Type Base Mount
No. of Poles 3P
Operational Current AC-23A @ 690V (A) 11
Poles 3P
Pollution Degree 3
Power Loss (W) 0.6/Pole
Rated Current (A) 25
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 750
Rated Operational Current AC-22A 380-415V (A) 25
Rated Operational Current AC-22A 500V (A) 25
Rated Operational Current AC-22A 690V (A) 25
Rated Operational Current AC-23A 380-415V (A) 20
Rated Operational Current AC-23A 500V (A) 20
Rated Operational Current AC-23A 690V (A) 11
Rated Operational Power AC-23A 500V (kW) 9
Rated Operational Power AC-23A 690V (kW) 9
Rated Operational Voltage (V) 750
Rated Short-time Withstand Current - Icw (kA/1s) 0.5
Sizes (mm) 43W x 54H x 52D
Standards and Approvals IEC 60947-3 / UL 508 / CSA C22.2 No. 14
Terminal Type Screw Terminals
