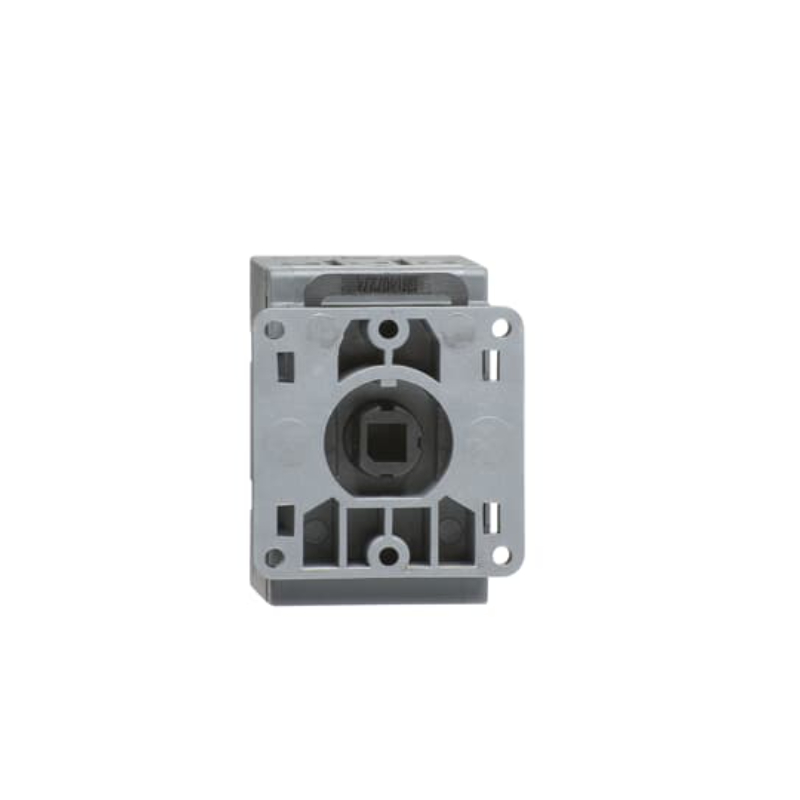

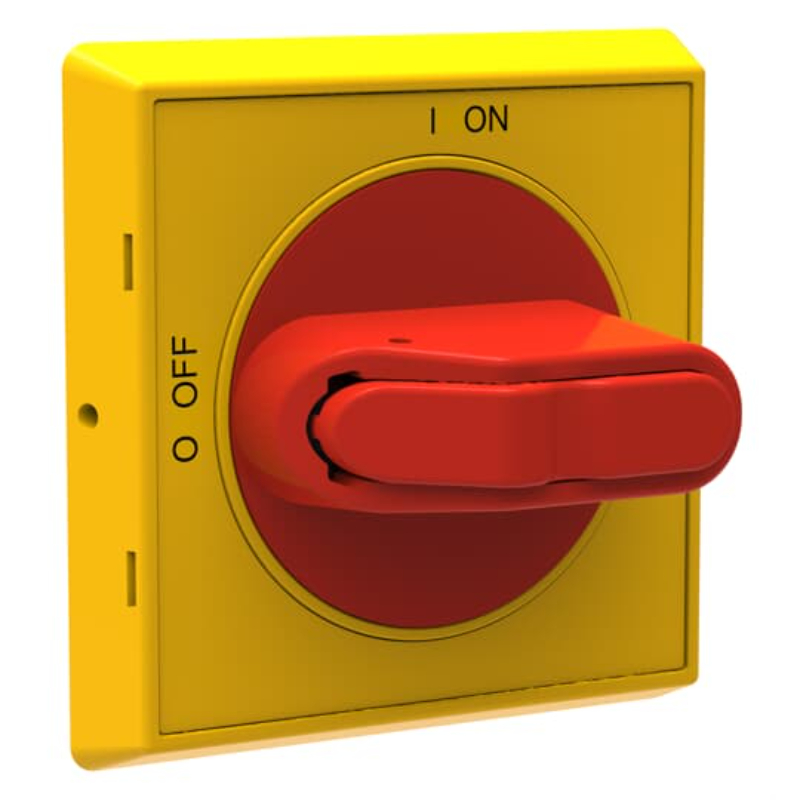

<p>When it comes to ensuring reliable and safe electrical disconnection in industrial and commercial settings, the Door Mount Load Break Switch is a solid choice. Designed with precision, this switch offers robust performance tailored for demanding environments.</p><p>With a rated current of 16 A, this load break switch is engineered to manage moderate electrical loads efficiently. It features a compact design with dimensions of 43 mm in width, 54 mm in height, and 52 mm in depth, making it an excellent fit for installations where space conservation is crucial.</p><p>The switch adheres to stringent standards and approvals such as IEC 60947-3, UL 508, and CSA C22.2 No. 14, ensuring compliance with international safety norms. The rated impulse withstand voltage stands at an impressive 8 kV while the rated short time withstand current reaches up to 0.5 kA.</p><p>This model operates at a maximum voltage of 750 V across its three poles and offers a degree of pollution protection categorized as IP3. Its ingress protection rating of IP20 guarantees basic protection against dust ingress.</p><p>Mounting is straightforward with its door type configuration complemented by a selector handle for easy operation. The handle itself measures at 65 mm high by 65 mm wide and has a depth of 43.5 mm; available in striking red and yellow colors for clear visibility—a critical feature during emergency situations or routine maintenance checks.</p><p>Handling power demands effectively, it supports up to a rated power of 7.5 kW facilitated through screw clamp terminals that accommodate cable cross-sections ranging from 0.75 to 10 sq-mm—ideal for varied wiring requirements.</p><p>Designed for efficiency without compromising on safety or functionality, the load break switch incorporates an air thermal current capacity of up to 25 A while maintaining minimal power loss at just about 0.3 W.</p><p>Its operating mechanism positioned at the top ensures intuitive access while allowing front operation mode which simplifies integration into existing systems or new setups alike.</p><p>In summary, this Door Mount Load Break Switch stands out due to its resilient build quality combined with essential features like high-rated insulation voltage (750 V) and versatile mounting capabilities—all wrapped within industry-standard compliance frameworks making it suitable for diverse applications across Australia’s industrial landscape.</p>
