Main Circuit Electrical Connection	Screw Connection
Operating Mechanism	Mechanism on Top of the Switch
Product Quantity	10
Rated Operational Power AC-23A 400-415 V (kW)	45
Brand	ABB
Cable Cross Section (mm²)	10 - 70
Conventional Free-Air Thermal Current - Ith (A)	125
Conventional Thermal Current - Ithe (A)	125
Degree of Protection	IP20
Dimensions (mm)	70W x 100H x 74D
Maximum Operational Voltage AC (V)	750
Mode of Operation	Front Operated
Mounting Type	Base Mount
NEMA Degree of Protection	1
No. of Poles	3
Pollution Degree	3
Power Loss (W)	6.3/Pole
Rated Impulse Withstand Voltage (kV)	8
Rated Insulation Voltage (V)	750
Rated Operational Current AC-21A 415V (A)	125
Rated Operational Current AC-22A 380-415V (A)	125
Rated Operational Current AC-22A 500V (A)	125
Rated Operational Current AC-22A 690V (A)	125
Rated Operational Current AC-23A 380-415V (A)	90
Rated Operational Current AC-23A 500V (A)	70
Rated Operational Current AC-23A 690V (A)	50
Rated Operational Power AC-23A 380-415V (kW)	45
Rated Operational Power AC-23A 500V (kW)	45
Rated Operational Power AC-23A 690V (kW)	45
Rated Operational Voltage (V)	750
Rated Short-Time Withstand Current - Icw (kA)	2.5
Rated Short-time Withstand Current - Icw (kA/1s)	2.5
Rated Uninterrupted Current - Iu (A)	125
Standards and Approvals	IEC 60947-3
Suitable For	Distribution Board Installation
Terminal Type	Screw Terminals
Type	Main Switch

Switch Disconnectors

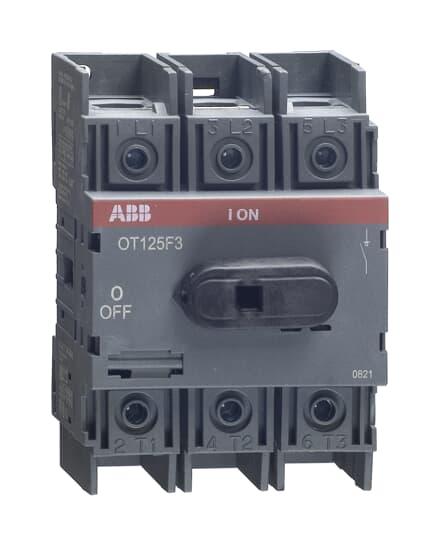

ABB OT125F3 SWITCH-DISCONNECTOR OT125F3
