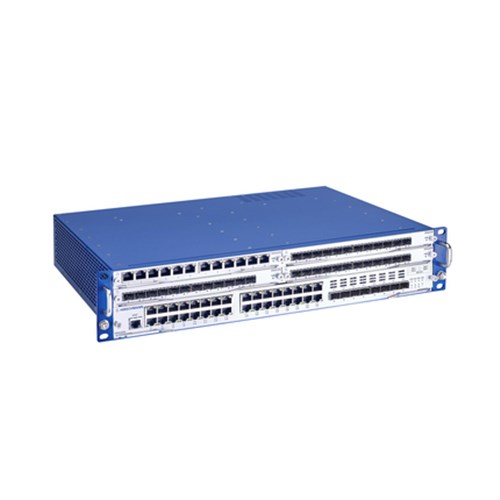

Hirschmann 942 153-002 Rack Mount Backbone Switch 19 in Control Cabinet Mount 100-240VAC

Product Code: 942 153-002

  • High-performance backbone switch
  • Suitable for 19 in control cabinet
  • Operates at 100-240 VAC, 80 W
  • Wide temp range: -40 to 70°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rack Mount Backbone Switch
Brand HIRSCHMANN
Series DRAGON MACH4500
Degree of Protection IP20
Depth 445 mm
Height 88 mm
Humidity 10-95%
Mounting Type 19 in Control Cabinet
Number of 1GB Ports 80
Number of 2.5GB Ports 8
Number of Ethernet Ports 80
Number of Fibre Ports 8
Operational Temperature 60 deg C
Rated Power 80 W
Rated Voltage 100-240 VAC
Relative Humidity 10-95 %
Software HiOS 09.0.06
Software Configuration Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
Software Diagnostics Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Email Notification, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, RSPAN, SFLOW, VLAN Mirroring, Port Mirroring N:2, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump, Snapshot Configuration Feature
Software Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, DNS Client, OPC-UA Server
Software Redundancy HIPER-Ring (Ring Switch), HIPER-Ring over Link Aggregation, Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), MRP over Link Aggregation, Redundant Network Coupling, Sub Ring Manager, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards, VRRP, VRRP Tracking, HiVRRP (VRRP enhancements)
Software Security MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, RADIUS Policy Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Denial-of-Service Prevention, LDAP, Ingress MAC-based ACL, Egress MAC-based ACL, Ingress IPv4-based ACL, Egress IPv4-based ACL, Time-based ACL, VLAN-based ACL, Ingress VLAN-based ACL, Egress VLAN-based ACL, ACL Flow-based Limiting, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Standards and Approvals EN50121-4
Storage Temperature -40 to 70 deg C
Width 480 mm

Description

<p>The DRAGON MACH4500 Backbone Switch is a robust and reliable solution designed for industrial and commercial environments that demand high performance and durability. This switch is engineered to fit seamlessly into your network infrastructure, offering a blend of efficiency and resilience.</p><p>With a rated power of 80 W and an operational voltage range from 100 to 240 VAC, the DRAGON MACH4500 ensures consistent performance across various power conditions. Its design caters to demanding applications, making it a suitable choice for professionals seeking dependable network solutions.</p><p>Installation is straightforward with its compatibility for mounting in a standard 19-inch control cabinet. This allows for easy integration into existing setups without the need for extensive modifications. The dimensions—480 mm in width, 88 mm in height, and 445 mm in depth—ensure that it fits neatly within space constraints while providing ample connectivity options.</p><p>One of the notable features of this backbone switch is its ability to operate efficiently across a wide humidity range of 10% to 95%. Coupled with an IP20 degree of protection, it offers adequate defense against dust ingress while being ideal for controlled environments where moisture levels can vary significantly.</p><p>The DRAGON MACH4500 excels in temperature resilience as well. It functions optimally at temperatures up to 60&amp;#176;C, making it well-suited for industrial settings where heat generation could be significant. Additionally, its storage temperature capacity ranges from -40&amp;#176;C to 70&amp;#176;C, ensuring that the device remains unaffected during transport or periods of inactivity.</p><p>Compliance with EN50121-4 standards further underscores its reliability by meeting stringent requirements relevant to railway applications among other industries. This certification confirms that the switch can withstand electromagnetic interference (EMI), which is crucial in maintaining uninterrupted operations even in challenging electrical environments.</p><p>In summary, the DRAGON MACH4500 Backbone Switch combines technical prowess with practical design features tailored for professional use cases. Whether you are upgrading an existing system or setting up new infrastructure, this switch provides the stability and performance needed to keep your operations running smoothly over time.</p>
