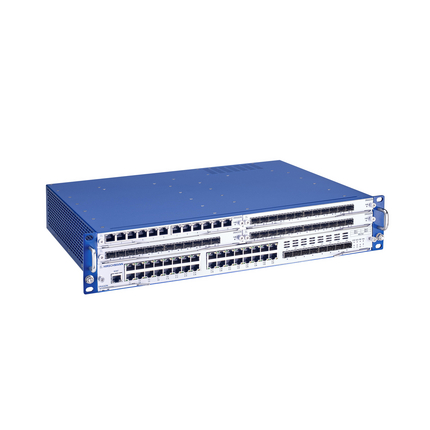

Hirschmann 942 153-003 Rack Mount Backbone Switch 19 in Control Cabinet Mount 100-240VAC

Product Code: 942 153-003

  • High-performance backbone switch
  • Suitable for 19" control cabinets
  • Operates in temperatures up to 60°C
  • Wide voltage range: 100-240 VAC
  • Complies with EN50121-4 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rack Mount Backbone Switch
Brand HIRSCHMANN
Series DRAGON MACH4500
Degree of Protection IP20
Depth 445 mm
Height 88 mm
Humidity 10-95%
Mounting Type 19 in Control Cabinet
Number of 1GB Ports 80
Number of 2.5GB Ports 8
Number of Ethernet Ports 80
Number of Fibre Ports 8
Operational Temperature 60 deg C
Rated Power 80 W
Rated Voltage 100-240 VAC
Relative Humidity 10-95 %
Software HiOS 09.0.06
Software Configuration Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
Software Diagnostics Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Email Notification, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, RSPAN, SFLOW, VLAN Mirroring, Port Mirroring N:2, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump, Snapshot Configuration Feature
Software Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, DNS Client, OPC-UA Server
Software Redundancy HIPER-Ring (Ring Switch), HIPER-Ring over Link Aggregation, Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), MRP over Link Aggregation, Redundant Network Coupling, Sub Ring Manager, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards, VRRP, VRRP Tracking, HiVRRP (VRRP enhancements)
Software Security MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, RADIUS Policy Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Denial-of-Service Prevention, LDAP, Ingress MAC-based ACL, Egress MAC-based ACL, Ingress IPv4-based ACL, Egress IPv4-based ACL, Time-based ACL, VLAN-based ACL, Ingress VLAN-based ACL, Egress VLAN-based ACL, ACL Flow-based Limiting, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Standards and Approvals EN50121-4
Storage Temperature -40 to 70 deg C
Width 480 mm

Description

<p>The DRAGON MACH4500 Backbone Switch is a robust and reliable solution designed to meet the demanding needs of industrial and commercial environments. This backbone switch is engineered for seamless integration into 19-inch control cabinets, making it an ideal choice for network infrastructure setups that require both efficiency and durability.</p><p>With a rated power consumption of 80 watts and operating within a voltage range of 100-240 VAC, this switch offers flexibility in various electrical settings. Its operational temperature reaches up to 60 degrees Celsius, ensuring performance stability even in warmer climates or high-temperature industrial applications. Additionally, the storage temperature capability ranges from -40 to 70 degrees Celsius, which means it can withstand extreme conditions when not in use.</p><p>The DRAGON MACH4500 boasts an IP20 degree of protection, providing adequate defense against solid objects larger than 12mm while being suitable for indoor environments where moisture exposure is minimal. The humidity tolerance spans from 10% to 95%, accommodating diverse environmental conditions without compromising functionality.</p><p>When it comes to compliance and safety standards, this backbone switch adheres to EN50121-4 regulations, underscoring its suitability for railway applications by meeting stringent electromagnetic compatibility requirements.</p><p>In terms of dimensions, the switch measures 480 mm in width, 88 mm in height, and has a depth of 445 mm. These dimensions are optimized for efficient space utilization within standard control cabinet installations.</p><p>Overall, the DRAGON MACH4500 Backbone Switch provides a dependable networking solution with features tailored for industrial-grade performance. It combines power efficiency with robust design elements that ensure long-term reliability across varied operational environments.</p>
