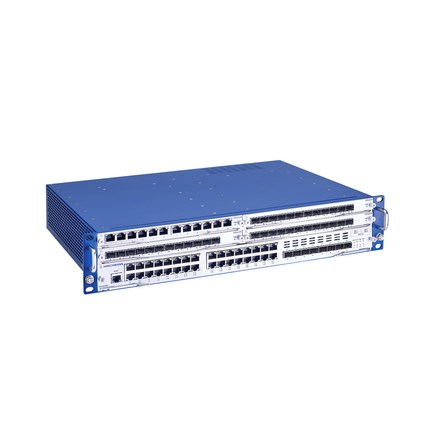

Hirschmann 942 153-001 Rack Mount Backbone Switch 19 in Control Cabinet Mount 100-240VAC

Product Code: 942 153-001

  • High-performance backbone switch
  • Supports 100-240 VAC power input
  • Compact 19" control cabinet design
  • Operates in temperatures up to 60°C
  • EN50121-4 compliant for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Rack Mount Backbone Switch
Brand HIRSCHMANN
Series DRAGON MACH4500
Degree of Protection IP20
Depth 445 mm
Height 88 mm
Humidity 10-95%
Mounting Type 19 in Control Cabinet
Number of 1GB Ports 80
Number of 2.5GB Ports 8
Number of Ethernet Ports 80
Number of Fibre Ports 8
Operational Temperature 60 deg C
Rated Power 80 W
Rated Voltage 100-240 VAC
Relative Humidity 10-95 %
Software HiOS 09.0.06
Software Configuration Automatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help, CLI script handling over ENVM at boot
Software Diagnostics Management Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Email Notification, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, RSPAN, SFLOW, VLAN Mirroring, Port Mirroring N:2, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump, Snapshot Configuration Feature
Software Management Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, DNS Client, OPC-UA Server
Software Redundancy HIPER-Ring (Ring Switch), HIPER-Ring over Link Aggregation, Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), MRP over Link Aggregation, Redundant Network Coupling, Sub Ring Manager, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards
Software Security MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, RADIUS Policy Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Denial-of-Service Prevention, LDAP, Ingress MAC-based ACL, Egress MAC-based ACL, Ingress IPv4-based ACL, Egress IPv4-based ACL, Time-based ACL, VLAN-based ACL, Ingress VLAN-based ACL, Egress VLAN-based ACL, ACL Flow-based Limiting, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Standards and Approvals EN50121-4
Storage Temperature -40 to 70 deg C
Width 480 mm

Description

<p>The DRAGON MACH4500 Backbone Switch is a robust and reliable solution for industrial and commercial networking needs. With its impressive specifications, this switch is designed to ensure seamless connectivity in demanding environments.</p><p>First off, the DRAGON MACH4500 operates at a rated power of 80 W and supports a wide voltage range from 100 to 240 VAC, making it versatile enough for various power supply scenarios. Its mounting type is specifically designed for a 19-inch control cabinet, ensuring easy integration into existing systems while maintaining an organized setup.</p><p>In terms of environmental resilience, the switch boasts an operational temperature capacity up to 60&amp;#176;C and can be stored in conditions as extreme as -40&amp;#176;C to 70&amp;#176;C. This broad temperature range ensures that the device remains functional even in challenging climates. The humidity tolerance of 10-95% further adds to its robustness against moisture-induced issues.</p><p>The physical dimensions—480 mm width, 88 mm height, and 445 mm depth—make this backbone switch compact yet substantial enough for efficient performance without occupying excessive space within your control cabinet.</p><p>Safety and reliability are underscored by its IP20 degree of protection, which offers basic protection against solid objects but requires installation in controlled environments due to lack of water resistance. However, it meets the EN50121-4 standards and approvals, indicating its suitability for railway applications where electromagnetic compatibility is crucial.</p><p>Overall, the DRAGON MACH4500 Backbone Switch stands out as a dependable choice for professionals seeking a high-performance networking solution that aligns with stringent industrial standards while offering flexibility in diverse operational settings.</p>
