ABB THREE-POS.HANDHELD DEVICE-TOP 2TLA020006R2200 JSHD4-2

Product Code: JSHD4-2

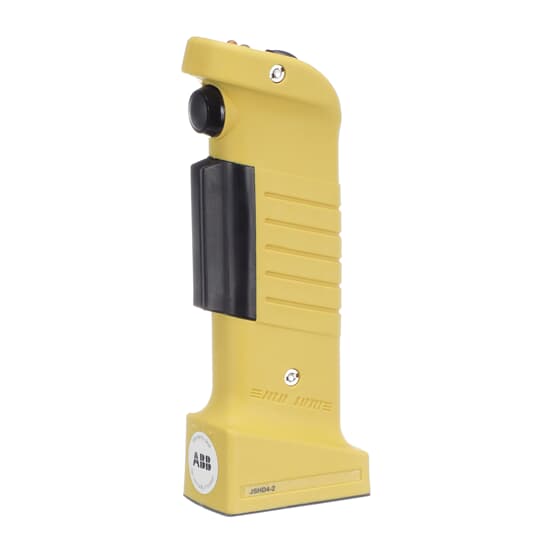

The JSHD4-2 is a top part of a three-position device JSHD4. It has LEDs, a front button and a top button. It must be used with one of the following bottom parts: AB, AD, AH, AJ, AK, AL. Anti-tamper can be chosen as option with all except bottom part AK. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.

Technical Specifications

Net Weight (kg) 0.139
Rated Operational Current DC-12 24V (A) 0.02
Brand ABB
Ambient Temperature Range (°C) -10 ... +70
Communication Interface Contacts
Degree of Protection IP65
Dimensions (mm) 157H x 56W x 340D
Material Handle: Polyamide and Noryl, Rubber: Neoprene
Rated Operational Voltage DC (V) 24
Suitable For JSHD4
