ABB ENABLING SWITCH JSHD4-1-AA

Product Code: JSHD4-1-AA

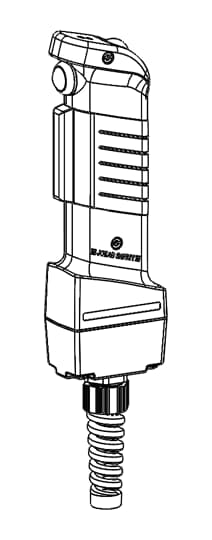

The JSHD4-1-AA is an ergonomic three-position device which top part has no LED and no extra button, and which bottom part is equipped with a cable gland and 5 screw connections. Three-position devices are used to allow a limited movement of the machine when the operator is in the dangerous area, for example during troubleshooting, test running and programming.

Technical Specifications

Net Weight (kg) 0.3
Rated Operational Current DC-12 24V (A) 0.02
Brand ABB
Ambient Temperature Range (°C) -10 ... +70
Communication Interface Contacts
Degree of Protection IP65
Dimensions (mm) 254H x 34W x 60D
Material Handle: Polyamide and Noryl, Rubber: Neoprene
Rated Operational Voltage DC (V) 24
Suitable For JSHD4
