W66 Industrial IP66 Switchgear

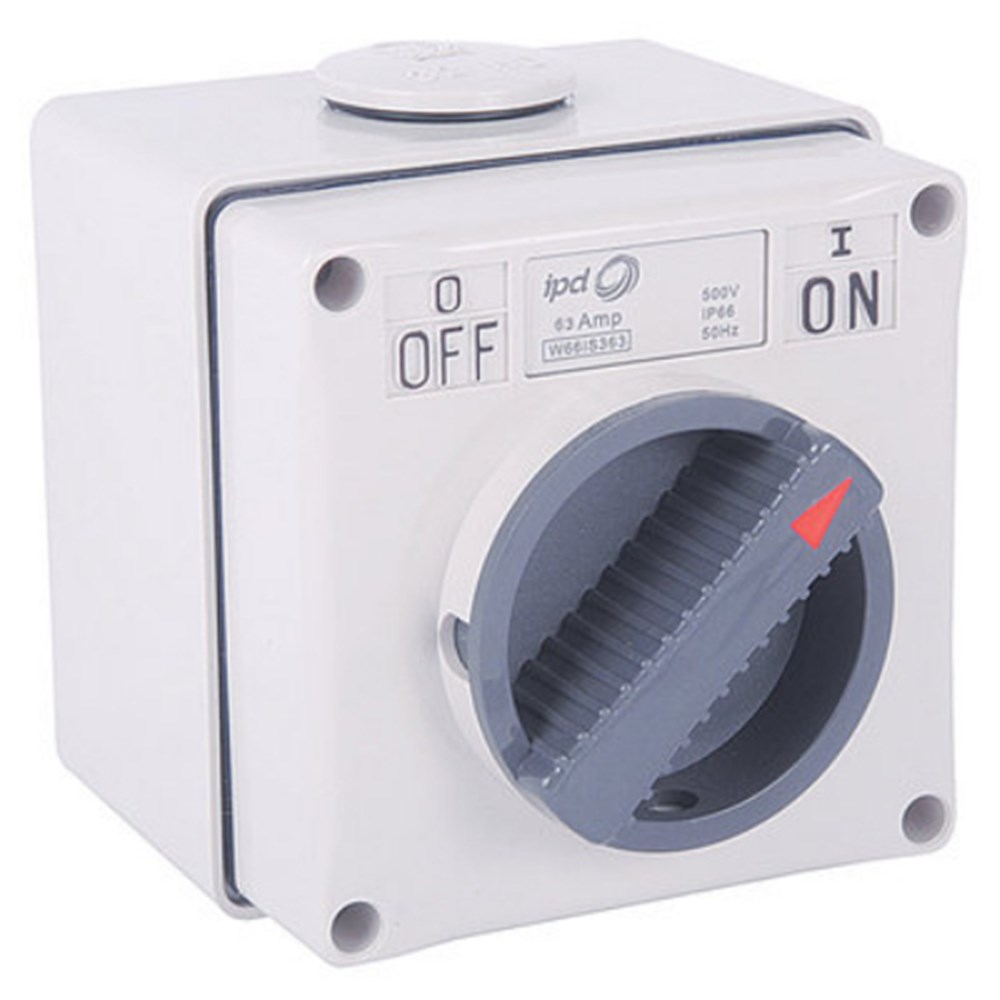

IPD MOTOR RATED ISOLATING SWITCH 3P 63A 500V, IP66 W66IS363

Product Code: W66IS363

Motor rated isolating switch 3P with full size back box, IP66. Current rating at 63A, voltage rating at 500V. Max cable area 25mm² and stainless steel fixings, padlockable. Introducing the Motor Rated Isolating Switch 3P. This switch is designed for motor applications and comes with a full-size back box for easy installation. With an IP66 rating, it offers excellent protection against dust and water ingress. The switch has a current rating of 63A, making it suitable for high-power applications. It can handle voltages up to 500V, ensuring reliable performance in various electrical systems. Featuring a maximum cable area of 25mm², this isolating switch can accommodate thick cables without any issues. The stainless steel fixings provide durability and resistance to corrosion. For added security, the switch is padlockable, allowing you to prevent unauthorized access or tampering. With its robust construction and reliable functionality, the Motor Rated Isolating Switch 3P is an ideal choice for motor control applications.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 101H x 109D
Gland Entries 2 x M25 + 1 x M32
Material Polycarbonate
Maximum Cable Cross Section (mm²) 25
No. of Poles 3
Rated Current (A) 63
Rated Voltage AC/DC (V) 500
Standards and Approvals IEC947-3/AS3133
