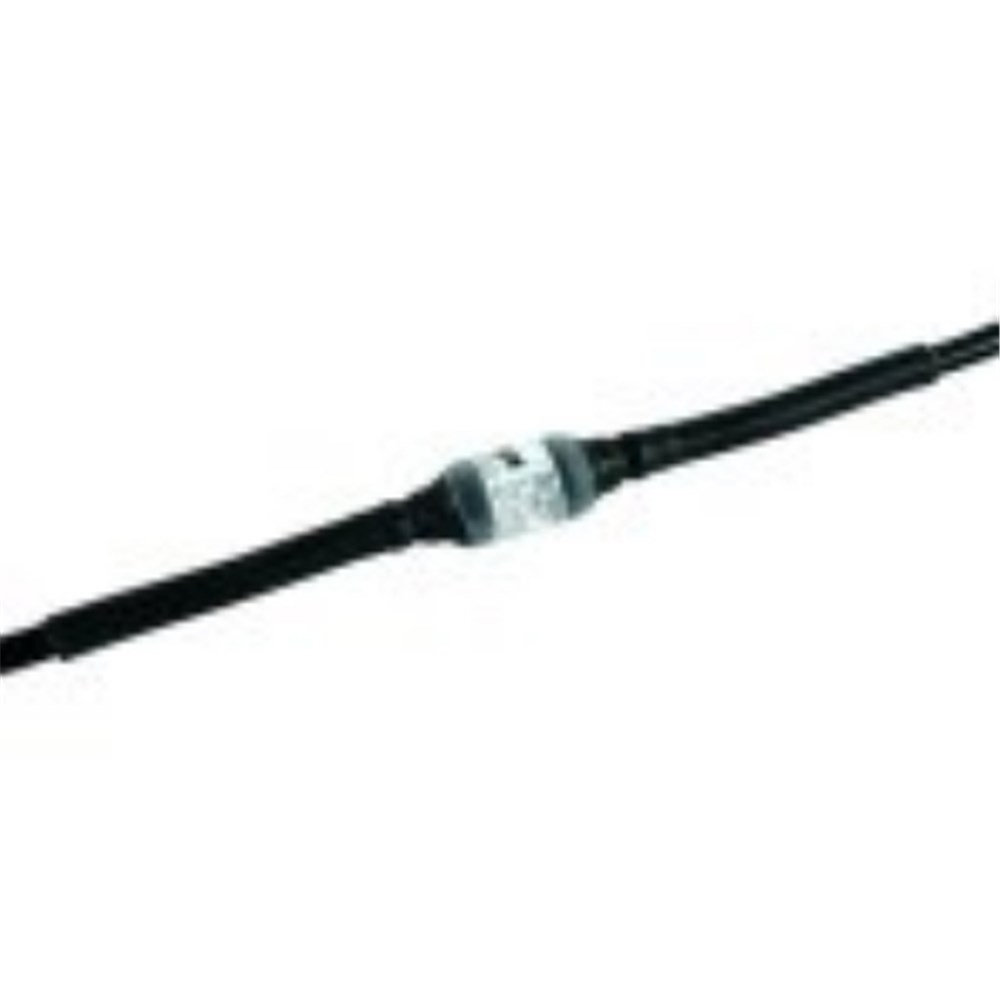

DEHN ISOLATING SPARK GAP FOR EX AREA WITH CONNECTING CABLES 2X 2.0M EXFS100KU

Product Code: EXFS100KU

Isolating spark gap EXFS 100 KU for indirectly connecting/earthing functionally isolated installation parts under lightning conditions. For safe installation in Ex zone 1 (gases) or zone 21 (dusts). ATEX-certified isolating spark gap with a low sparkover voltage for lightning equipotential bonding according to IEC 62305.

Technical Specifications

Class (Lightning Current Carrying Capability) (kA) H
Enclosure Diameter (mm) 34
Enclosure Length (mm) 123
Rated Impulse Sparkover Voltage - Ur imp (kV) ≤ 1.25
Brand DEHN
Article No. 923101
Degree of Protection IP67
Dimensions (mm) 0.27W x 0.36L x 0.06D
Enclosure Material Water-Proof Plastic Sheath
Lightning Impulse Current (10/350 µs) - Iimp (kA) 100
Nominal Discharge Current (8/20µs) - In (kA) 100
Weight (kg) 2.14
