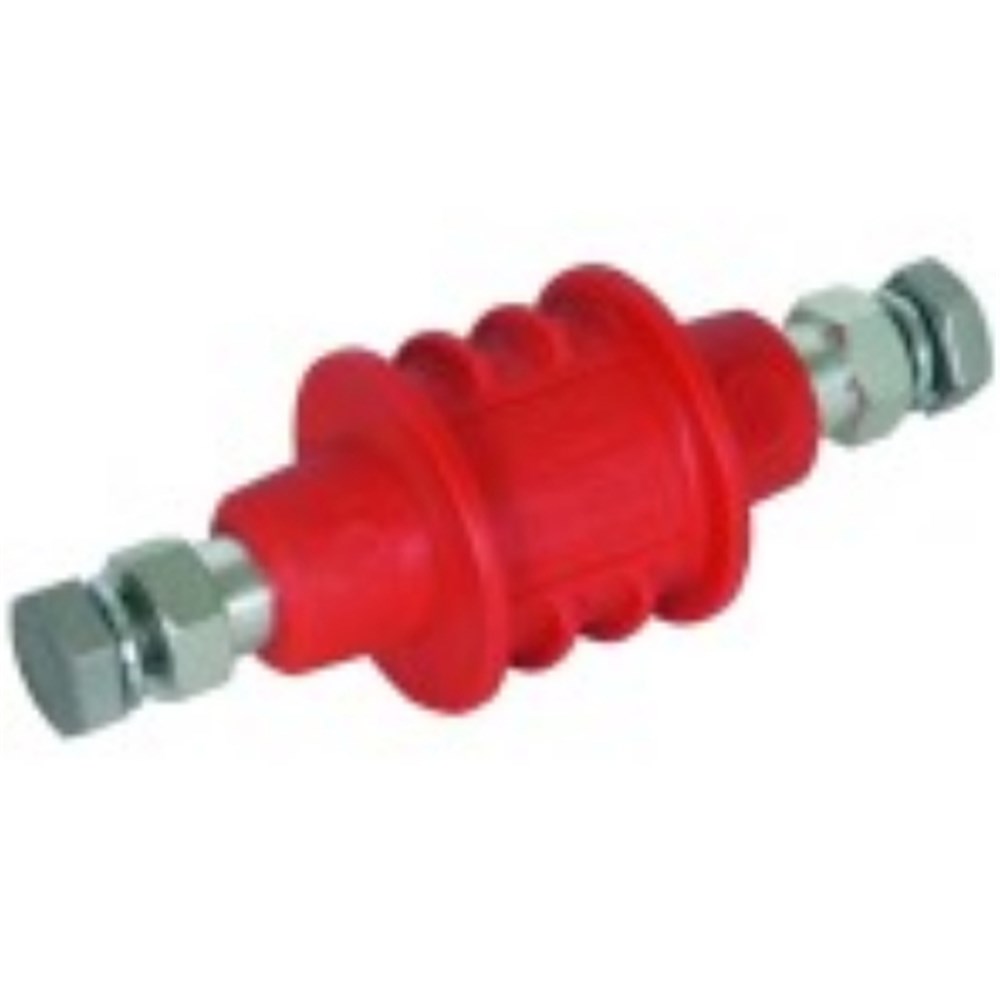

DEHN ISOLATING SPARK GAP FOR EX AREA WITH THREADED SCREWS M10 EXFS100

Product Code: EXFS100

EXFS 100 isolating spark gap for use in Ex areas for indirectly connecting/earthing functionally isolated installation parts under lightning conditions. For safe installation in Ex zone 1 (gases) or zone 21 (dusts). ATEX-certified isolating spark gap for lightning equipotential bonding according to IEC 62305 with a low sparkover voltage.

Technical Specifications

Class (Lightning Current Carrying Capability) (kA) H
Enclosure Diameter (mm) 45.5
Enclosure Length (mm) 100
Rated Impulse Sparkover Voltage - Ur imp (kV) ≤ 1.25
Brand DEHN
Article No. 923100
Degree of Protection IP67
Dimensions (mm) 0.05W x 0.16L x 0.05D
Enclosure Material Plastic Sheath
Lightning Impulse Current (10/350 µs) - Iimp (kA) 100
Nominal Discharge Current (8/20µs) - In (kA) 100
Weight (kg) 0.31
