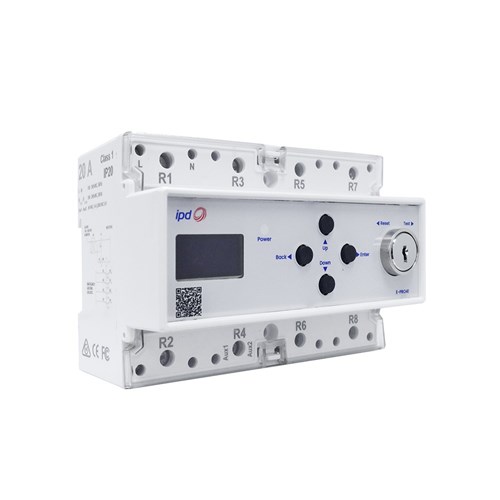

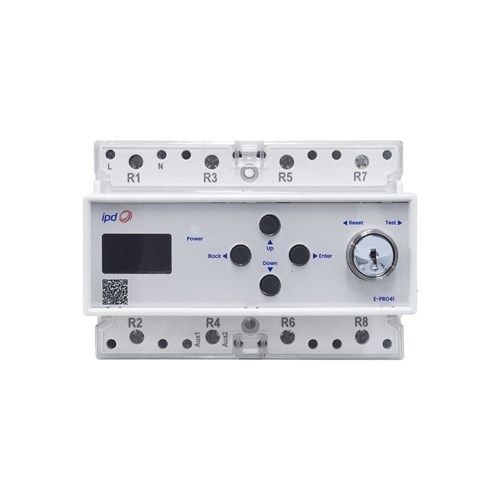

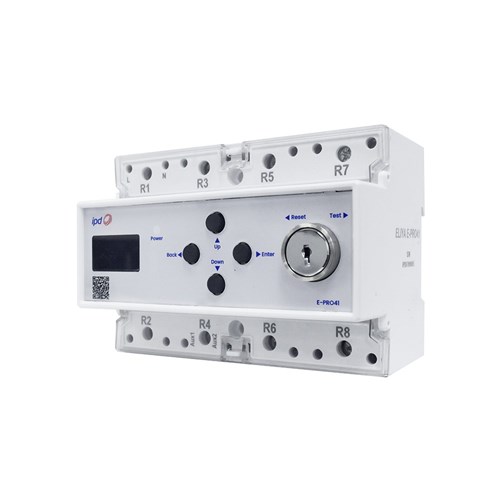

IPD E-PRO41 EMERGENCY LIGHTING TEST SWITCH, 20A 4N/C, 240VAC 0.96"OLED, DIN MOUNT, KEY-OPERATED

Product Code: E-PRO41

  • Designed for periodic testing of emergency lightning circuits Conforms to AS/NZS 2293.1:2018 Emergency lighting and exit signs for buildings Conforms to IEC 61812-1:2022 Time relays and coupling relays for industrial and residential use 60, 90, 120 mins Preset and Discrete programmable timer 4 single phase 20A circuits Key or PIN lockable 24 VDC Dry output contacts up to 5A for external contactor control Operations counter 0.96" OLED display with count-down timer
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Emergency Lighting Test Switch
Brand IPD
Ambient Temperature 0 to 40 deg C
Cable Cross Section 1.5-2.5 sq-mm Power Supply, 4-10 sq-mm Emergency Lighting
Contact Material Copper Tin Plated
Degree of Pollution 2
Degree of Protection IP20
Depth 73 mm
Dimensions 88W x 73H x 125L (mm)
Display Type 0.96 in OLED Display (128 x 64 px)
Electrical Durability 1000 Cycles
Frame Size DIN1
Height 88 mm
Key Removal/Retained Positions 2-Position Spring-Return-Centre

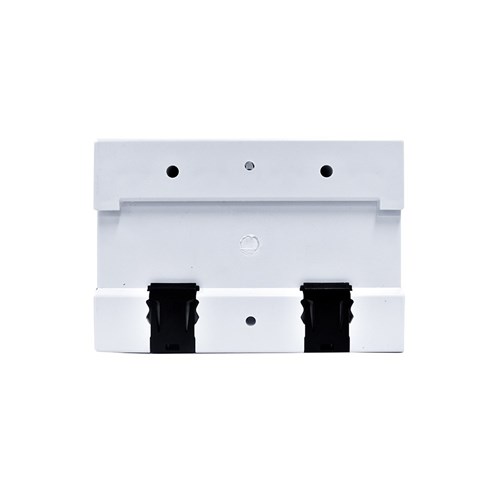

Mounting Type 35 mm DIN Rail
Number of Circuits 4
Rated Current 20 A
Rated Frequency 50 Hz
Rated Power 10 W
Rated Voltage 100-240 VAC
Relative Humidity 60%
Relay Type External Non-Latching
Storage Temperature 0 to 40 deg C
Tightening Torque Control Supply Terminals: 0.6Nm | Output Circuit Terminals: 1.2Nm
Timer Function 1-99999 sec Discrete/60, 90 and 120 min Pre-Set
Upstream Protection Circuit Breaker: Current Limiting Breaker 20A, ABB S201C20 (or equivalent); Fuse: 20A aM Fuse
Width 125 mm
Wiring Type Solid or Stranded, Single Wire; Power Supply: 1.5mm² to 2.5mm²; Emergency Lighting: 4mm² to 10mm²
Mechanical Endurance 10,000 Operations

Description

The Emergency Lighting Test Switch, E-PRO41, is intended for testing single phase circuits for emergency lighting according to AS/NZS 2293.1:2018. The E-PRO41 is normally closed, allowing the full supply to emergency lighting circuits up to 20A per circuit. On a periodical basis and in accordance with the norm, the E-PRO41 enables the operator, through a key selector or front buttons, to operate the test switch and cut off the power for a duration either preset (60, 90 or 120mins) or other discrete times programmable through the front buttons. An OLED display allow count down as well as advance sequential programming. Statistics of operation are also available within the unit. The E-PRO41 allows the command of an external contactor through a dry output contact up to 5A 30 VDC or 250 VAC.
