Product Code: RV8H-L-AD12

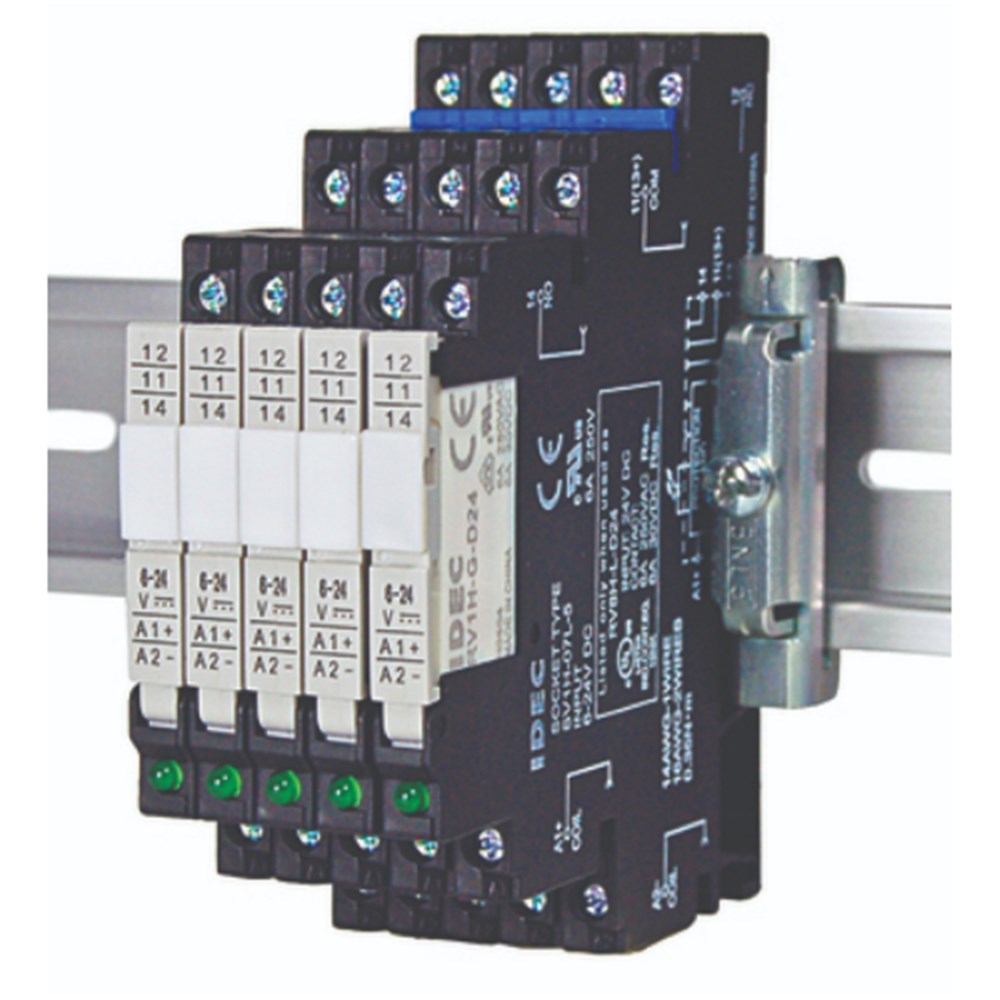

The IDEC RV8H-L-AD12 Interface Relay is a compact and efficient solution for various switching needs. This slimline 6mm-wide relay operates with a 12V AC/DC coil, featuring SPDT contacts with a 6A switching current at 250VAC/30VDC. It includes gold-plated contacts for reliable conductivity and universal screw terminals for easy wiring. The relay comes with a universal AC/DC socket that has built-in surge suppression and an indicator green LED. Additionally, it is equipped with a lever for straightforward locking and removal of the relay, enhancing ease of use in installation and maintenance tasks.

Brand	IDEC
Coil Voltage AC/DC (V)	12
Contact Configuration	SPDT
Contact Material	AgNi (Au plated)
Degree of Protection	IP20
Dielectrical Strength (kV)	4 (Between Contact and Coil ), 1 (Between Poles)
Dimensions (mm)	6 (Width)
Mounting Type	DIN Rail
No. of Poles	1P
Operating Humidity	5 to 85% (no condensation)
Operational Temperature Range (°C)	-40 to +70
Rated Current (A)	6
Series	RV8H
Terminal Type	Screw
Weight (kg)	0.03

Relays

IDEC INTERFACE RELAY 6mm SPDT 12V AC/DC SCREW TYPE 6A CONTACT RV8H-L-AD12
