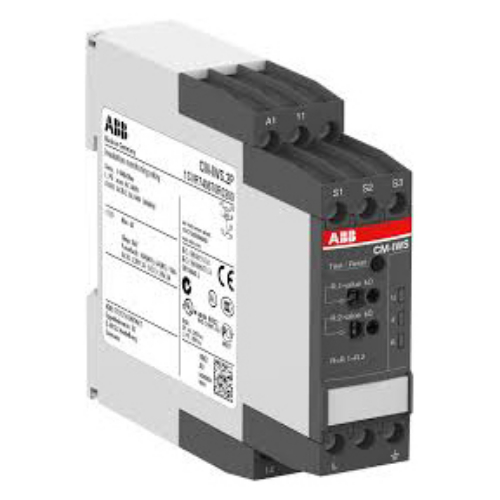

ABB CM-IWS.2S INSULATION MONITORING RELAY 1C/O 24-240VAC/DC

Product Code: CM-IWS.2S

The Insulation Resistance Monitoring Relay is designed to monitor insulation resistance in unearthed AC systems. It can handle voltages up to 400V AC and has a measuring range of 1 to 100 kO. The relay also has a system leakage capacitance of 10 mF. It features a single changeover contact SPDT and operates with a supply voltage of 24-240VAC/DC. The relay is compact, with a width of 22.5mm, making it suitable for use in modular setups.

Technical Specifications

Brand ABB
Contacts 1CO
Degree of Protection IP50 (Housing), IP20 (Terminals)
LED Colour U: Green, F: Red, R: Yellow
Measuring Range (Kilo Ohm) 1 - 100
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to +60
Pollution Degree 3
Rated Control Supply Voltage AC/DC (V) 24 - 240
Rated Frequency (Hz) 15-400
Rated Impulse Withstand Voltage (kV) 6
System Leakage Capacitance (µF) 10
Terminal Type Screw
