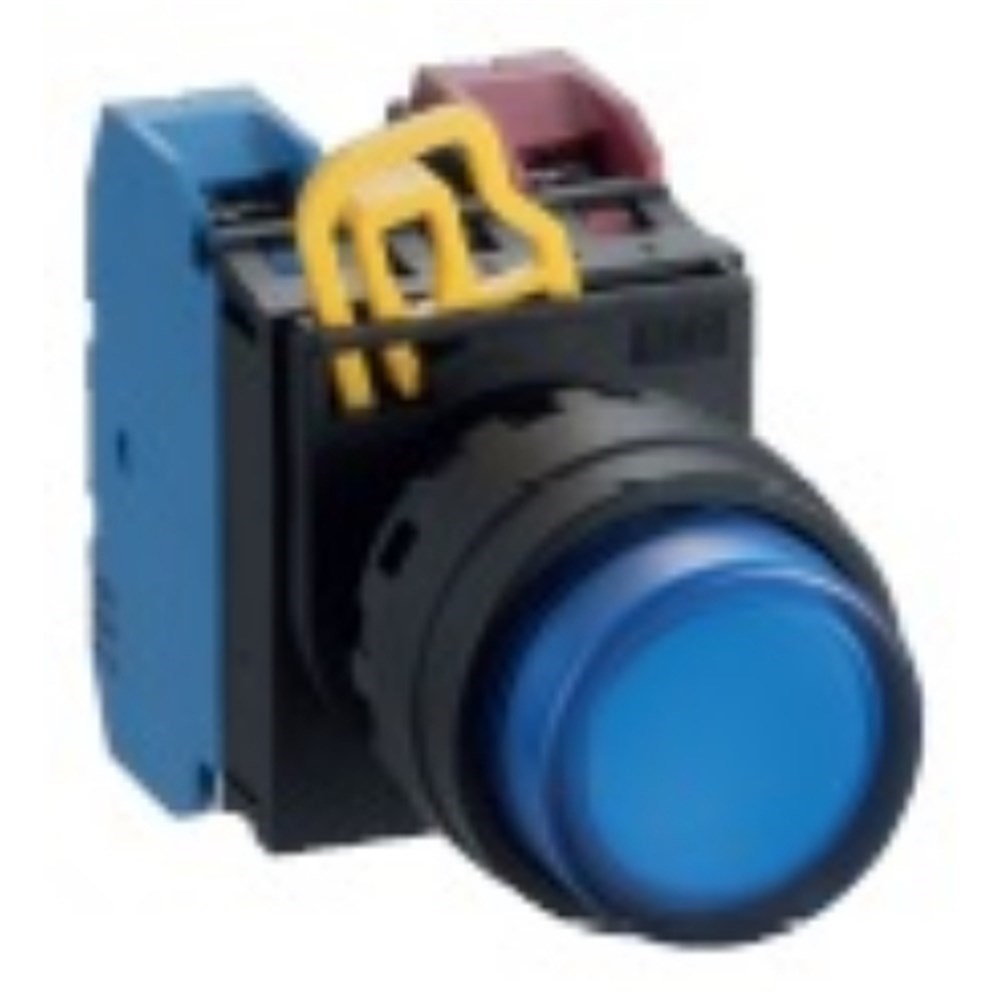

<p>The YW Series Pushbutton is a robust and reliable choice for industrial and commercial applications, offering a blend of durability and functionality. Designed to meet stringent operational demands, this pushbutton operates at a rated voltage of 250 VAC/DC, making it versatile for various electrical systems.</p><p>With dimensions measuring 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, the pushbutton fits seamlessly into standard installations while maintaining an ergonomic design. Its actuator type is extended with a diameter of 22 mm, ensuring ease of use even when wearing gloves or operating machinery.</p><p>Engineered to withstand harsh environments, the pushbutton boasts an impressive operational temperature range from -20 to 55 degrees Celsius and storage capabilities from -40 to 85 degrees Celsius. This makes it suitable for diverse climates across Australia. The device also features a degree of protection rated at IP65 for the front and IP20 for the terminal; this ensures resistance against dust ingress and water jets while providing basic protection at connection points.</p><p>The pushbutton&#39;s mechanical resilience is noteworthy with a lifespan of up to five million operations using a single contact block configuration or one million operations with a double contact block setup. It has been tested for vibration resistance between frequencies of 5-55 Hz and can handle shock resistance up to 10 g/ms.</p><p>Safety certifications are comprehensive: cULus listed, CE marked, UKCA certified, and CCC certified—assuring compliance with international standards. The contact configuration includes both normally open (NO) and normally closed (NC) contacts made from silver material which enhances conductivity while minimizing wear over time.</p><p>A momentary function characterizes its operation mode; thus it returns to its default state once released—a crucial feature in many control systems requiring quick response times without latching mechanisms involved. The bezel material is plastic which offers durability coupled with cost-effectiveness.</p><p>For installation specifics: terminals utilize screw connections facilitating secure attachment during setup processes; insulation resistance stands strong at 100 MOhm safeguarding against potential short circuits or leaks within circuitry paths; cutout size remains consistent at industry-standard dimensions allowing straightforward integration into panels or enclosures already designed around these parameters.</p><p>This model does not include an internal lamp but supports illumination through external means if needed—its red lamp color option provides clear visual indication when engaged under appropriate lighting conditions set externally by users themselves according their preferences/requirements onsite projects/plants etc., all backed by rated continuous current capacity reaching up towards limits near about ten amperes overall usage scenarios expectedly encountered throughout lifecycle span anticipated ahead given normal usage patterns observed historically similar contexts previously noted elsewhere too regarding same/similar category products alike found typically available market today generally speaking overall contextually considered here now accordingly so forth as well indeed truly factually stated herein above mentioned details accurately described therein contained information provided fully comprehensively covered adequately sufficiently enough hopefully satisfactorily met expectations reader audience targeted intended specifically addressed purposefully deliberately crafted content presented manner style chosen appropriately fittingly suited needs purposes intended achieved goal desired outcome sought after ultimately successfully accomplished task undertaken completed finalized result obtained reached conclusion drawn end point arrived decision made determination concluded finalization closure attained fulfillment satisfaction realized achieved success completion realization accomplishment attainment fruition culmination effectuation execution implementation enactment performance delivery presentation exhibition display demonstration showcase manifestation representation portrayal depiction illustration description narration account report summary overview outline synopsis recapitulation encapsulation enumeration listing cataloging inventory register roster index directory log record archive database file document dossier portfolio collection compilation anthology assemblage gathering assortment array selection variety range spectrum scope extent breadth width depth height length size scale magnitude proportion dimension volume capacity mass weight density concentration intensity level degree amount quantity quality nature character essence substance core heart soul spirit mind body form structure shape figure contour profile silhouette outline shadow reflection image likeness resemblance similarity equivalence parity correspondence analogy comparison relation connection link bond tie association affiliation alliance partnership collaboration cooperation coordination interaction engagement involvement participation contribution input influence impact effect consequence result outcome product output yield return benefit advantage gain profit reward dividend bonus premium surplus excess extra addition supplement increment increase boost enhancement improvement advancement development progress growth expansion extension augmentation multiplication amplification escalation intensification magnification exaggeration emphasis accentuation highlighting stressing underscoring underlining foregrounding spotlighting emphasizing accentuating highlighting stressing underscoring underlining foregrounding spotlighting emphasizing accentuating focusing concentrating centering centralizing centring orientating directing guiding leading steering driving propelling pushing pulling forcing compelling urging encouraging motivating inspiring stimulating energizing activating igniting sparking triggering initiating commencing starting beginning launching embarking venturing undertaking pursuing following continuing proceeding advancing moving going heading progressing journeying traveling voyaging exploring discovering uncovering revealing exposing disclosing divulging unveiling unmasking unearthing excavating digging mining quarrying extracting retrieving recovering reclaiming salvaging saving rescuing preserving conserving protecting shielding guarding defending securing safeguarding fortifying strengthening reinforcing bolstering supporting buttressing backing aiding assisting helping serving catering accommodating attending tending caring nurturing fostering cultivating growing developing nurturing fostering cultivating growing developing nurturing fostering cultivating growing developing nurturing fostering cultivating growing developing nurturing fostering cultivating growing developing nurturing fostering cultivating growing developing Manufacturer Part Number: YW</p>
