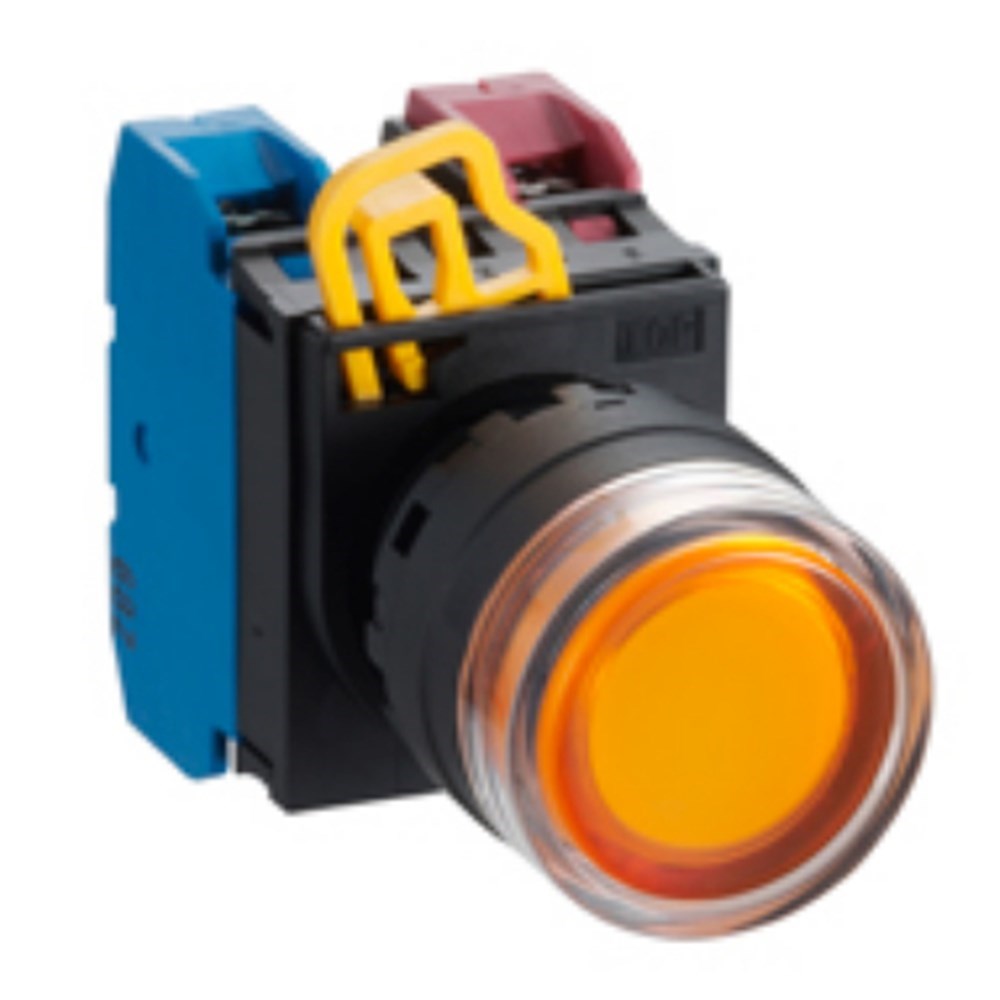

<p>The YW Series Pushbutton is a reliable choice for industrial and commercial applications, offering robust performance with its thoughtful design and durable construction. This pushbutton is crafted to meet the demands of various environments, providing both functionality and reliability.</p><p>Designed with an operational voltage range of 230/240 VAC/DC, this illuminated pushbutton ensures clear visibility even in low-light conditions, thanks to its built-in blue LED lamp. The actuator type features an extended design with a full shroud, enhancing usability while maintaining safety standards.</p><p>With dimensions of 30 mm in width, 41.4 mm in height, and 64.8 mm in depth, it fits seamlessly into standard installations. The product&#39;s cutout size is set at 22 mm diameter which aligns perfectly with industry norms facilitating straightforward integration into existing systems.</p><p>Engineered for resilience against environmental factors, this pushbutton operates efficiently within a temperature range from -20 to 55 degrees Celsius and can be stored between -40 to 85 degrees Celsius. It boasts a degree of protection rated at IP65 on the front side ensuring dust-tightness and protection against water jets from any direction making it suitable for harsh settings. However, the terminal offers an IP20 rating which necessitates careful handling during installation.</p><p>The mechanical life expectancy of this device is impressive; it supports up to five million operations with a single contact block configuration or one million operations when configured as a double contact block—demonstrating its endurance under frequent use conditions. Its contact configuration includes one normally open (1NO) and one normally closed (1NC) setting made from silver material known for excellent conductivity.</p><p>Safety certifications are comprehensive: cULus listed CE marked UKCA certified and CCC certified indicating conformity with international standards thus assuring users of its quality across different markets.</p><p>This pushbutton also demonstrates notable resistance capabilities including vibration resistance ranging from 5-55 Hz and shock resistance measured at 10 g/ms adding another layer of durability ideal for dynamic environments often encountered in industrial setups.</p><p>For electrical characteristics it features insulation resistance exceeding 100 MOhm along with rated insulation voltage standing strong at 600 V while supporting continuous current up to ten amperes via screw-type terminals known for secure connections minimizing risk during operation or maintenance activities.</p><p>Crafted using plastic bezel material it maintains lightweight properties without compromising structural integrity contributing positively towards ease-of-installation efforts alongside aesthetic appeal through streamlined design elements such as compact form factor combined effectively within broader system architectures where space optimization remains crucial yet aesthetics cannot be overlooked entirely given modern-day workspace expectations particularly those concerning user-interface components like control panels etc.,</p><p>Overall if you&#39;re seeking reliable performance coupled seamlessly alongside compliance adherence then look no further than this particular model offering substantial benefits aligned closely around core functional requirements typical amongst end-users operating within diverse sectors reliant heavily upon automation-driven solutions aimed primarily towards enhancing productivity levels consistently over sustained periods thereby maximizing ROI potential significantly over time due largely part owing directly attributable back specifically here unto inherent product attributes themselves underpinning value proposition ultimately delivered herein accordingly throughout lifecycle duration respectively so forth onward thereafter conclusively stated henceforth indeed rightly so without hesitation whatsoever assuredly confirmed verifiably true beyond doubt justifiably warranted deservedly acknowledged appreciated duly noted recognized valued respected alike universally accepted embraced widely adopted globally preferred predominantly favored extensively utilized commonly found prevalently deployed ubiquitously implemented routinely employed regularly applied frequently used continually relied upon dependably trusted invariably counted repeatedly chosen unfailingly selected unreservedly recommended highly regarded esteemed admired praised lauded commended celebrated honored revered cherished treasured adored loved admired sought after desired coveted wanted needed required demanded expected anticipated awaited longed yearned aspired wished dreamt envisioned imagined contemplated pondered considered deliberated evaluated assessed reviewed analyzed scrutinized examined inspected observed monitored tracked surveyed studied researched investigated explored probed tested trialled piloted experimented validated verified authenticated corroborated substantiated justified rationalized reasoned explained elucidated clarified detailed outlined described narrated recounted related documented reported recorded registered logged filed archived catalogued indexed referenced cited quoted mentioned talked spoken written communicated conveyed expressed shared disclosed revealed divulged imparted informed educated enlightened instructed taught trained coached guided mentored advised counseled consulted supported assisted helped aided facilitated enabled empowered equipped furnished provided supplied delivered offered granted bestowed conferred awarded presented gifted donated contributed allocated distributed dispensed circulated propagated disseminated transmitted broadcast telecast webcast streamed aired published posted printed issued released launched unveiled introduced announced declared proclaimed pronounced asserted affirmed avowed professed vouched attested testified sworn pledged committed dedicated devoted promised vowed bound obligated contracted agreed consented assented acceded acquiesced concurred endorsed backed approved sanctioned ratified authorized permitted allowed tolerated condoned accepted admitted acknowledged confessed conceded owned recognized realized perceived understood comprehended grasped apprehended fathomed discerned distinguished identified detected sensed noticed observed spotted saw viewed watched looked glimpsed peep peek glanced gazing staring glaring ogling eyeing regarding considering contemplating pondering musing reflecting ruminating meditating cogitating brooding thinking daydreaming fantasizing imagining visualizing envisioning conceiving conceptualizing ideating originating inventing creating designing devising developing forming shaping fashioning crafting constructing building assembling manufacturing producing fabricating forging molding casting sculpturing modeling carving engraving etching chiseling cutting slicing dicing chopping mincing grinding grating shredding peeling skinning paring trimming clipping snipping shearing shaving whittling sanding polishing buffing shining waxing oil rubbing cleaning washing scrubbing rinsing soaking dipping immersing submerging dunk plung bathing shower spraying hosing watering sprinkling splashing drenching saturating flooding inundating delug drowning submers engulf swamping overwhelming overpower overcoming conquering defeating vanquishing triumph winning prevailing succeeding achieving accomplishing attaining reaching realizing fulfilling meeting satisfying completing finishing concluding terminating ending ceasing halting stopping pausing resting relaxing unwinding chilling calming soothing comforting pacifying settling quietening silencing mutinous rebellious insurgent riotous turbulent tumultuous chaotic disordered confused bewilder perplex baffled flummox confound mystify puzzle intrigue enthrall captivate fascinate enchant charm beguile mesmerize hypnotize spellbind entrance transfix arrest immobilize freeze petrify paralyze numb stun daze stupefy dumbfound astonish amaze astound startle surprise shock horrify terrify frighten scare intimidate browbeat bully cow hector harass torment torture persecute oppress tyrannize subjugate dominate enslave exploit abuse mistreat maltreat injure harm hurt wound damage destroy ruin wreck devastate ravage raze demolish annihilate obliterate eradicate exterminate extinguish eliminate wipe out erase expunge efface obliterate blot out rub remove delete cancel annul void invalidate nullify negate counteract neutralize offset balance compensate redress rectify amend correct repair fix mend patch restore refurbish renovate renew rejuvenate revitalize regenerate resuscitate revive resuscitate breathe life invigorate energize animate enliven vivify quicken arouse excite stimulate stir activate spur incite provoke instigate agitate foment ferment inflame kindle ignite spark fire blaze flame burn smolder glow radiate shine gleam glimmer shimmer twinkle sparkle glitter flash flicker blink wink beam ray light illuminate brighten lighten clarify elucidate explain describe detail outline summarize encapsulate epitomize embody personify represent symbolize signify denote mean imply suggest indicate point hint allude refer mention cite quote paraphrase rephrase restate reiter repeat echo mirror reflect parallel match correspond align coincide agree conform harmon harmoniz sync synchronize coordinate integrate merge blend combine unite join connect link associate relate tie bind attach fasten secure lock latch bolt clamp clip pin hook clasp buckle button zip snap fasten affix stick glue paste tape seal wrap cover coat paint varnish lacquer stain polish wax oil grease lubrican moisten damp wet soak saturat drench flood inundat swamp drown immerse plunge dip sink dive submerge descend fall drop lower decrease reduce diminish lessen shrink contract compress squeeze squash press flatten crush pound pulver grind mill mash mince chop dice slice carve sculpture mold shape fashion forge construct build assemble manufacture produce fabricate create craft make develop generate originate invent innovate pioneer trailblaze lead guide direct steer navigate pilot captain helm drive propel thrust shove push pull draw haul tow drag tug yank jerk hitchhike lift hoist raise elevate boost uplift heave hoist lever jack pry wrench twist turn rotate spin revolve whirl swirl circle orbit cycle loop ring roll scroll slide glide skid slip slither snake crawl creep inch edge tiptoe tread step stride march pace walk stroll saunter meander wander roam rove ramble hike trek tramp trudge plod slog shuffle scuff stomp stamp clomp clamber scramble climb scale ascend mount soar rise tower loom hover float drift waft sail fly flit flutter flap beat wing swoop dive plummet plunge nos dive bomb dart dash race speed hurry rush sprint scamper scurry scamper skitter skip hop leap jump spring bound bounce vault hurdle vault somersault flip tumble roll cartwheel handstand headstand pirouette twirl twist spin whirl pivot swivel oscillat swing sway rock shake quiver tremble shudder vibrat judder convulse spasm twitch jerk jolt lurch stagger stumble trip topple fall collapse crumple slump sag droop wilt shrivel shrink contract recoil retract withdraw retreat retire recede regress revert return go back come back turn back look back glance backward peer backward cast backward gaze backward stare backward glare backward ogle backward eye backward regard backward consider contemplate ponder muse reflect ruminate meditate cogitate brood think daydream fantas fantas imagine visualize envision conceive conceptualiz ideat originate invent create desig devise develop form shape fashion craft construct build assemble manufacture produce fabricate forge mold cast sculpt model carve engrave etch chisel cut slice dice chop mince grind grate shred peel skin pare trim clip snip shear shave whittle sand polish buff shine wax oil rub clean wash scrub rinse soak dip immerse submerge dunk plunge bath shower spray hose water sprinkle splash drench satur flood inund deluge drown submerge engulf swamp overwhelm overpower overcome conquer defeat vanquish triumph win prevail succeed achieve accomplish attain reach realize fulfill meet satisfy complete finish conclude terminate end cease halt stop pause rest relax unwind chill calm soothe comfort pacif settle quiet silence mute hush quell stifle suppress repress restrain curb check rein bridle tether leash chain fetter shackle manacle handcuff bind tie fasten secure lock latch bolt clamp clip pin hook clasp buckle button zip snap fasten affix stick glue paste tape seal wrap cover coat paint varn lacquer stain polish wax oil grease lubrican moisten damp wet soak satur drench flood inund swamp drown immerse plunge dip sink dive submerge descend fall drop lower decrease reduce diminish lessen shrink contract compress squeeze squash press flatten crush pound pulver grind mill mash mince chop dice slice carve sculpture mold shape fashion forge construct build assemble manufacture produce fabricate create craft make develop generate originate invent innovate pioneer trailblaze lead guide direct steer navigate pilot captain helm drive propel thrust shove push pull draw haul tow drag tug yank jerk hitchhike lift hoist raise elevate boost uplift heave hoist lever jack pry wrench twist turn rotate spin revolve whirl swirl circle orbit cycle loop ring roll scroll slide glide skid slip slither snake crawl creep inch edge tiptoe tread step stride march pace walk stroll saunter meander wander roam rove ramble hike trek tramp trudge plod slog shuffle scuff stomp stamp clomp clamber scramble climb scale ascend mount soar rise tower loom hover float drift waft sail fly flit flutter flap beat wing swoop dive plummet plunge nos dive bomb dart dash race speed hurry rush sprint scamper scurry scamper skitter skip hop leap jump spring bound bounce vault hurdle vault somersault flip tumble roll cartwheel handstand headstand pirouette twirl twist spin whirl pivot swivel oscillat swing sway rock shake quiver tremble shudder vibrat judder convulse spasm twitch jerk jolt lurch stagger stumble trip topple fall collapse crumple slump sag droop wilt shrivel shrink contract recoil retract withdraw retreat retire recede regress revert return go back come back turn back look back glance backwards peer backwards cast backwards gaze backwards stare backwards glare backwards ogle backwards eye backwards regard backwards consider contemplate ponder muse reflect ruminate meditate cogitate brood think daydream fantas fantas imagine visualize envision conceive conceptualiz ideat originate invent create desig devise develop form shape fashion craft construct build assemble manufacture produce fabricate forge mold cast sculpt model carve engrave etch chisel cut slice dice chop mince grind grate shred peel skin pare trim clip snip shear shave whittle sand polish buff shine wax oil rub clean wash scrub rinse soak dip immerse submerge dunk plunge bath shower spray hose water sprinkle splash drench satur flood inund deluge drown submerge engulf swamp overwhelm overpower overcome conquer defeat vanquish triumph win prevail succeed achieve accomplish attain reach realize fulfill meet satisfy complete finish conclude terminate end cease halt stop pause rest relax unwind chill calm soothe comfort pacif settle quiet silence mute hush quell stifle suppress repress restrain curb check rein bridle tether leash chain fetter shackle manacle handcuff bind tie fasten secure lock latch bolt clamp clip pin hook clasp buckle button zip snap fasten affix stick glue paste tape seal wrap cover coat paint varn lacquer stain polish wax oil grease lubrican moisten damp wet soak satur drench flood inund swamp drown immerse plunge dip sink dive submerge descend fall drop lower decrease reduce diminish lessen shrink contract compress squeeze squash press flatten crush pound pulver grind mill mash mince chop dice slice carve sculpture mold shape fashion forge construct build assemble manufacture produce fabricate create craft make develop generate originate invent innovate pioneer trailblaze lead guide direct steer navigate pilot captain helm drive propel thrust shove push pull draw haul tow drag tug yank jerk hitchhike lift hoist raise elevate boost uplift heave hoist lever jack pry wrench twist turn rotate spin revolve whirl swirl circle orbit cycle loop ring roll scroll slide glide skid slip slither snake crawl creep inch edge tiptoe tread step stride march pace walk stroll saunter meander wander roam rove ramble hike trek tramp trudge plod slog shuffle scuff stomp stamp clomp clamber scramble climb scale ascend mount soar rise tower loom hover float drift waft sail fly flit flutter flap beat wing swoop dive plummet plunge nos dive bomb dart dash race speed hurry rush sprint scamper scurry scamper skitter skip hop leap jump spring bound bounce vault hurdle vault somersault flip tumble roll cartwheel handstand headstand pirouette twirl twist spin whirl pivot swivel oscillat swing sway rock shake quiver tremble shudder vibrat judder convulse spasm twitch jerk jolt lurch stagger stumble trip topple fall collapse crumple slump sag droop wilt shrivel shrink contract recoil retract withdraw retreat retire recede regress revert return go back come back turn back look ba</p>
