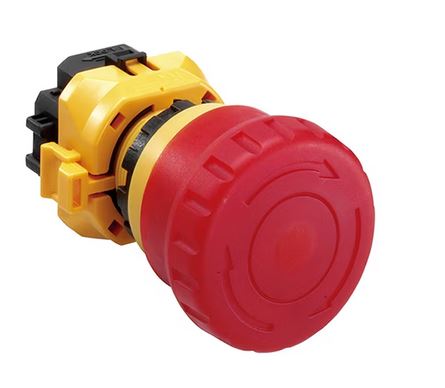

IDEC ILLUMINATED E-STOP 40mm MUSHROOM 24V AC/DC LED, 2NC+1NO SAFE BREAK ACTION TYPE, XW SERIES XW1E-TV412Q4M-R

Product Code: XW1E-TV412Q4M-R

The IDEC XW1E-TV412Q4M-R is an illuminated Emergency Stop button featuring a 40mm mushroom head with a 24V AC/DC LED for clear visibility. It includes 2 Normally Closed (NC) and 1 Normally Open (NO) safe break action contacts, ensuring reliable disconnection for safety. This E-Stop is part of the XW series, designed for quick identification and rapid shutdown of machinery in emergency situations.

Technical Specifications

Brand IDEC
Actuator Type Mushroom
Colour Red
Contact Material Gold Plated Silver
Contacts 2NC 1NO
Degree of Protection IP65 (Front)
Illuminated Yes
Mode of Operation Pushlock Pull/Turn Reset
Mounting Hole Diameter (mm) 22
Mushroom Diameter (mm) 40
Operational Temperature Range (°C) -25 to +55
Overvoltage Category II
Pollution Degree 3
Rated Current (mA) 15
Rated Voltage AC/DC (V) 24
Series XW
Standards and Approvals IEC60947-5-5, IEC60947-5-1, IEC60529
Storage Temperature (°C) -45 to +80
Terminal Type M3 screw terminal
