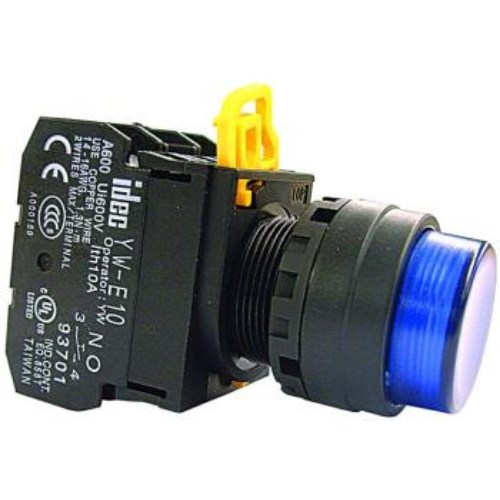

<p>For professionals in the industrial and commercial sectors seeking a reliable pushbutton solution, the YW Series Pushbutton offers a robust set of features designed to meet demanding operational requirements. This illuminated pushbutton operates efficiently at a rated voltage of 24 VAC/DC, making it suitable for various control applications.</p><p>Measuring 30 mm in width, 41.4 mm in height, and with a depth of 64.8 mm, this device is compact yet functional. It has been engineered to withstand challenging environments with an operational temperature range from -20 to 55 degrees Celsius and storage capabilities from -40 to 85 degrees Celsius. With its IP65 front degree of protection and IP20 terminal rating, it provides excellent resistance against dust and low-pressure water jets while ensuring safety at the terminals.</p><p>The YW Series Pushbutton is cULus listed, CE marked, UKCA certified, and CCC certified, reflecting its compliance with international standards for quality and safety. Its mechanical life spans up to five million operations for single contact blocks and one million operations for double contact blocks—testaments to its durability.</p><p>Designed with an extended actuator type for ease of use, this momentary function pushbutton includes a built-in blue LED lamp that enhances visibility in dimly lit environments. The silver contact material ensures reliable conductivity while supporting a contact configuration of 1NO+1NC (one normally open plus one normally closed).</p><p>With vibration resistance between 5-55 Hz and shock resistance rated at 10 g/ms, this pushbutton is well-suited for environments subject to mechanical stress. The device supports insulation resistance up to 100 MOhm and boasts a rated continuous current capacity of up to 10 A.</p><p>Installation is straightforward thanks to its screw terminal type design compatible with standard cutout sizes of 22 mm diameter—a perfect match given its own diameter specification—and it comes equipped with a plastic bezel material that balances strength with weight considerations.</p><p>In summary, the YW Series Pushbutton combines reliability with performance through thoughtful engineering tailored for industrial applications where precision matters most.</p>
