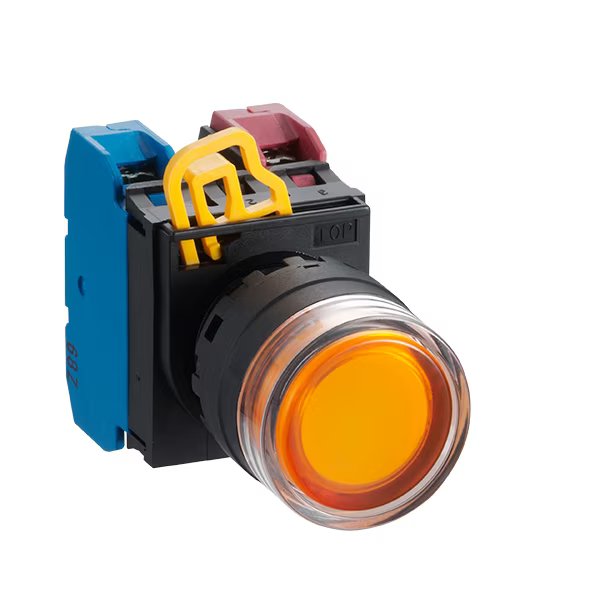

<p>The YW Series pushbutton is a reliable choice for industrial and commercial settings, providing robust functionality with its illuminated design. Operating at a rated voltage of 230/240 VAC/DC, this pushbutton is well-suited for various applications where visibility and durability are paramount.</p><p>With dimensions of 30 mm in width, 41.4 mm in height, and a depth of 64.8 mm, the pushbutton offers compact yet substantial presence on control panels. It operates efficiently within an operational temperature range from -20 to 55 degrees Celsius, making it versatile enough for diverse environments. The storage temperature extends from -40 to 85 degrees Celsius, ensuring resilience during non-operational periods.</p><p>Designed with practicality in mind, the pushbutton features a screw terminal type that facilitates straightforward installation and maintenance. The device boasts an IP65 front degree of protection against dust and water ingress while maintaining an IP20 rating at the terminals—ideal for indoor installations where exposure is limited.</p><p>Adhering to international standards such as cULus listing, CE Marking, UKCA Certification, and CCC Certification ensures compliance across multiple regions and industries. Its vibration resistance spans frequencies between 5-55 Hz while offering shock resistance up to 10 g/ms—attributes that contribute significantly to its durability under demanding conditions.</p><p>The YW Series pushbutton provides mechanical life expectancy of up to 0.25 million operations with a single contact block or up to 0.1 million operations when utilizing a double contact block configuration; this longevity supports cost-effective operation over time.</p><p>Featuring a contact configuration of one normally open (1NO) plus one normally closed (1NC), it accommodates various control circuit requirements seamlessly. The actuator type is extended with full shroud protection for enhanced user safety during operation.</p><p>A built-in LED lamp emits vibrant yellow illumination which aids identification even in low-light scenarios—a critical feature that enhances operator efficiency by reducing potential errors during activation processes.</p><p>The device&#39;s bezel material comprises durable plastic suitable for industrial environments without compromising on aesthetic appeal or functional integrity over prolonged use periods.</p><p>With insulation resistance rated at 100 MOhm and cutout size matching its diameter at 22 mm—the standard sizing simplifies integration into existing systems effortlessly while supporting rated continuous current handling capacity up to ten amperes (10 A).</p><p>This maintained function pushbutton offers consistent performance within humidity levels ranging between forty-five percent (45%) through eighty-five percent (85%), affirming reliability across varying atmospheric conditions typical within industrial settings worldwide.</p>
